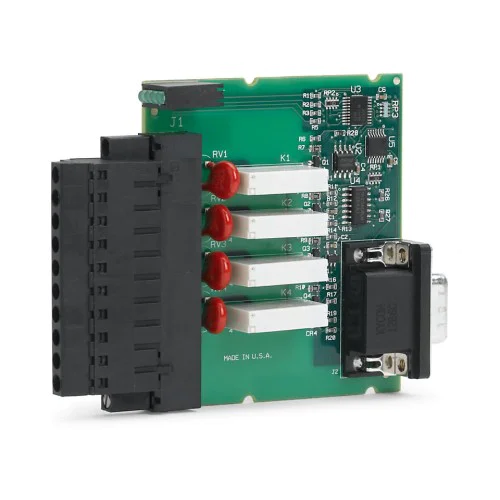

National Instruments sbRIO-9482 Board-only electromechanical relay output module

1 image: Click to enlarge

National Instruments · NI Single-Board RIO

sbRIO-9482

Name: sbRIO-9482
Brand: National Instruments

The NI sbRIO-9482 is a board-only, four-channel SPST electromechanical relay output module for the Single-Board RIO ecosystem. It is an I/O module, not a standalone embedded controller.

ManufacturerNational Instruments

ModelsbRIO-9482

Part Number783000-01

Product TypeBoard-only electromechanical relay output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9482

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Part number783000-01

Output channels4 electromechanical relays

Contact configurationSPST, Form A

ConstructionBoard-only module

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI lists the sbRIO-9482 among its Single-Board RIO C Series modules. Its board-only construction distinguishes it from an enclosed module and from a processor-based sbRIO controller.

Switching-current limits depend on voltage and the number of active channels. Use the resistive-load ratings in the official manual when selecting loads; do not treat the highest single-channel rating as an all-channel rating.

Four SPST electromechanical relay outputs.
Board-only format within NI's Single-Board RIO module range.
Supports AC and DC resistive-load switching within the documented limits.

Verified specifications

Technical data

Verified product specifications.

Number of channels	4 channels
Relay configuration	SPST electromechanical, Form A
Maximum resistive-load switching voltage	60 VDC or 250 Vrms
Maximum current per channel, all channels on	1.5 A at 30 VDC; 1 A at 60 VDC; 1.5 A at 250 Vrms; resistive loads
Switching rate	1 operation/s
Power-on output state	Channels off

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Embedded hardware ecosystem

sbRIO-9482

Board-only C Series relay output module

Confirm the exact controller and module interface before integration; the catalog's CompactDAQ category does not establish chassis compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9482 and sbRIO-9482 User Manual and SpecificationsUser Manual And Specifications · ni.com

Open →

NI Single-Board RIO HardwareOfficial Hardware And Part-number Listing · ni.com

Open →

Relay wiring, pin assignments, and switching specificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the sbRIO-9482 an embedded controller?

No. NI identifies it as a four-channel board-only relay module, part number 783000-01.

Does the NI-9482 manual also cover the sbRIO-9482?

Yes. NI's documentation page explicitly states that the manual's information also applies to the sbRIO-9482.

What current can it switch with all four channels on?

For resistive loads, the maximum per channel is 1.5 A at 30 VDC, 1 A at 60 VDC, or 1.5 A at 250 Vrms.
