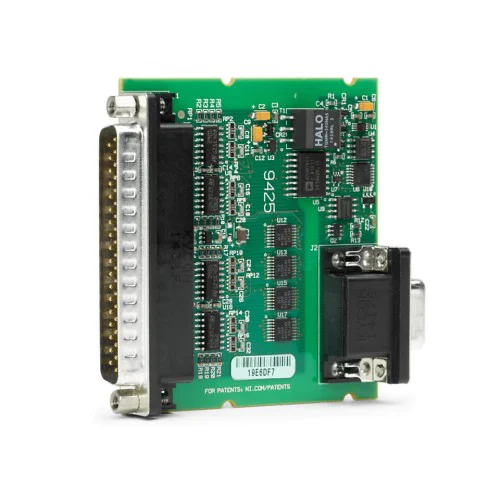

National Instruments sbRIO-9425 Board-only sinking digital input module
1 image: Click to enlarge
National Instruments · NI Single-Board RIO

sbRIO-9425

The NI sbRIO-9425, also described by NI as the NI 9425E, is a board-only module with 32 sinking digital inputs. NI identifies part number 783950-01 as a 24 V module with 7 µs timing in its Single-Board RIO module range.

ManufacturerNational Instruments
ModelsbRIO-9425
Part Number783950-01
Product TypeBoard-only sinking digital input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9425

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs32 sinking digital channels
Nominal signal voltage24 V
Form factorBoard-only, non-enclosed
Signal connector37-pin D-SUB
