National Instruments sbRIO-9227 Board-only current input module

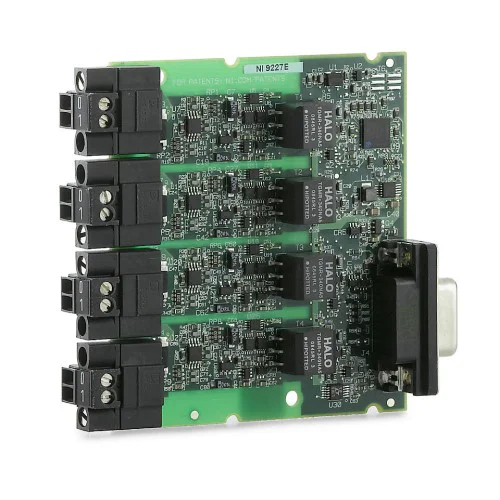

1 image: Click to enlarge

National Instruments · Single-Board RIO

sbRIO-9227

The NI sbRIO-9227, listed by NI as the NI 9227E board-only module, provides four simultaneously sampled current inputs with 24-bit conversion. It supports a 5 Arms safe operating input on all four channels and channel-to-channel isolation.

ManufacturerNational Instruments

ModelsbRIO-9227

Part Number781118-01

Product TypeBoard-only current input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9227

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs4 simultaneous current input channels

Resolution24-bit delta-sigma ADCs

Safe operating input5 Arms per channel

Internal-timebase samplingUp to 50 kS/s per channel

Form factorBoard-only, non-enclosed

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI identifies sbRIO-9227 part number 781118-01 as the NI 9227E board-only current input module in its Single-Board RIO hardware range. This is a non-enclosed member of the board-only C Series module family.

Each input has an independent signal path and ADC for simultaneous acquisition. Analog and digital filtering reject out-of-band signals, while detachable screw-terminal connectors accept grounded or floating current sources within the specified safety limits.

Independent ADC on each channel enables simultaneous four-channel sampling.
Channel-to-channel isolation rated at 250 Vrms continuous, Measurement Category II, with basic insulation.
Combined analog and digital filtering provides out-of-band rejection.
Supports an internal master timebase or an external master timebase for sampling control.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4 channels
ADC resolution	24 bits
Sampling mode	Simultaneous
Data rate with internal master timebase	1.613 to 50 per channel; discrete supported rates kS/s
Data rate with external master timebase	390.625 to 51200 per channel; subject to timebase and divider constraints S/s
Safe operating input	5 continuous RMS per channel, applied simultaneously to all four channels A
Input coupling	DC
Input impedance	12 between AI+ and AI− mΩ
Channel-to-channel continuous isolation	250; Measurement Category II, basic insulation Vrms
