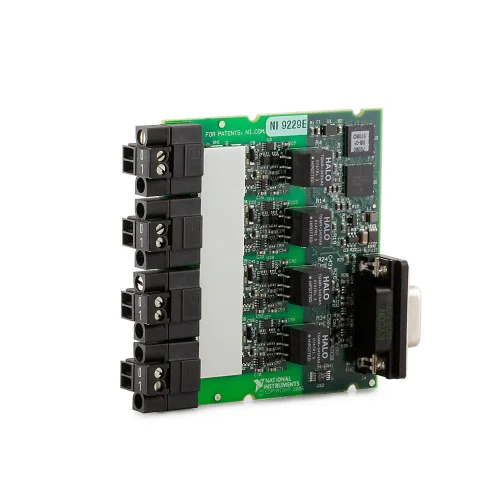

National Instruments sbRIO-9229 Non-enclosed voltage input module
1 image: Click to enlarge
National Instruments · Single-Board RIO / CompactRIO

sbRIO-9229

The NI sbRIO-9229 is a board-only C Series voltage input module for OEM integration. It provides four differential inputs with a ±60 V range, 24-bit resolution and simultaneous sampling up to 50 kS/s per channel.

ManufacturerNational Instruments
ModelsbRIO-9229
Part Number780874-01
Product TypeNon-enclosed voltage input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9229

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs4 differential channels
Input range±60 V
Resolution24-bit
Sampling50 kS/s per channel, simultaneous
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

NI lists the sbRIO-9229 in its Single-Board RIO hardware portfolio as the NI 9229E board-only analog input module, part number 780874-01.

  • Channel-to-channel isolation.
  • Anti-alias filtering.
  • Non-enclosed construction for OEM applications.
Verified specifications

Technical data

Verified product specifications.

Differential analog input channels4 channels
Analog input range-60 to +60 V
Resolution24 bits
Maximum sample rate50 kS/s/ch
Simultaneous samplingYes
Channel-to-channel isolation250 Vrms
Front connectionScrew terminal
EnclosedNo
Conformal coatingNo
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Board-level hardware portfolio

sbRIO-9229

C Series voltage input module

Verify the controller interface and mechanical integration before selecting this non-enclosed module.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

sbRIO-9229 Product PageOfficial Product Page · ni.com
Open →
sbRIO-9229 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
NI Single-Board RIO Hardware ReferenceTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
sbRIO-9215View product →
Related model
sbRIO-9221View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which part number identifies the board-only sbRIO-9229?

NI's Single-Board RIO hardware table identifies 780874-01 as the NI 9229E board-only module under the sbRIO-9229 model.
