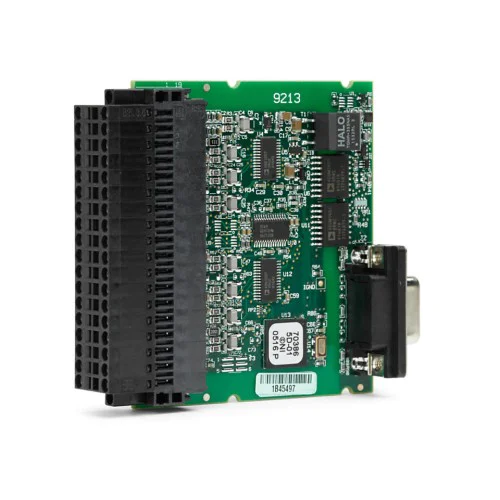

National Instruments sbRIO-9213 Non-enclosed thermocouple input module

1 image: Click to enlarge

National Instruments · Single-Board RIO / CompactRIO

sbRIO-9213

The NI sbRIO-9213, also documented as NI 9213E, is a board-only, 16-channel thermocouple input module for OEM measurement systems.

ManufacturerNational Instruments

ModelsbRIO-9213

Part Number781210-01

Product TypeNon-enclosed thermocouple input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9213

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Thermocouple channels16

Maximum sampling rate75 S/s aggregate

ADC resolution24-bit

ConstructionBoard-only, non-enclosed

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for higher-channel-count thermocouple systems, the sbRIO-9213 adds temperature inputs to mixed-signal test systems. Its non-enclosed construction is intended for OEM integration.

Inputs are multiplexed into one ADC rather than sampled simultaneously. The module provides high-resolution and high-speed timing modes.

Integrated cold-junction compensation.
Open-thermocouple detection.
Anti-aliasing filters.

Verified specifications

Technical data

Verified product specifications.

Differential analog input channels	16 channels
Maximum aggregate sample rate	75 S/s
ADC resolution	24 bit
Analog input range	-78.125 to +78.125 mV
Channel-to-earth ground isolation	250 Vrms
Supported thermocouple types	J, K, T, E, N, B, R, S
Input connector	36-terminal detachable spring-terminal connector
Enclosed	No
Conformal coating	No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Board-level OEM hardware ecosystem

sbRIO-9213 / NI 9213E

C Series thermocouple input module

Manufacturer-listed platform

CompactRIO

Install inside a suitable enclosure before use; verify host and software requirements in the system documentation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

sbRIO-9213 Product PageProduct Page · ni.com

Open →

NI 9213E Operating Instructions and SpecificationsManual · docs-be.ni.com

Open →

sbRIO-9213 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com

Open →

NI Single-Board RIO Hardware Model and Part-Number ReferenceTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is sbRIO-9213 the same model documented as NI 9213E?

NI lists sbRIO-9213 part number 781210-01 as the NI 9213E 16-channel, 24-bit thermocouple input board.

Are the input channels sampled simultaneously?

No. The 16 thermocouple channels, cold-junction compensation channel and autozero channel share one multiplexed ADC.

What affects temperature measurement accuracy?

Accuracy depends on thermocouple type, sensor accuracy, measured temperature and cold-junction temperature. Thermal gradients at the terminals also contribute to error.
