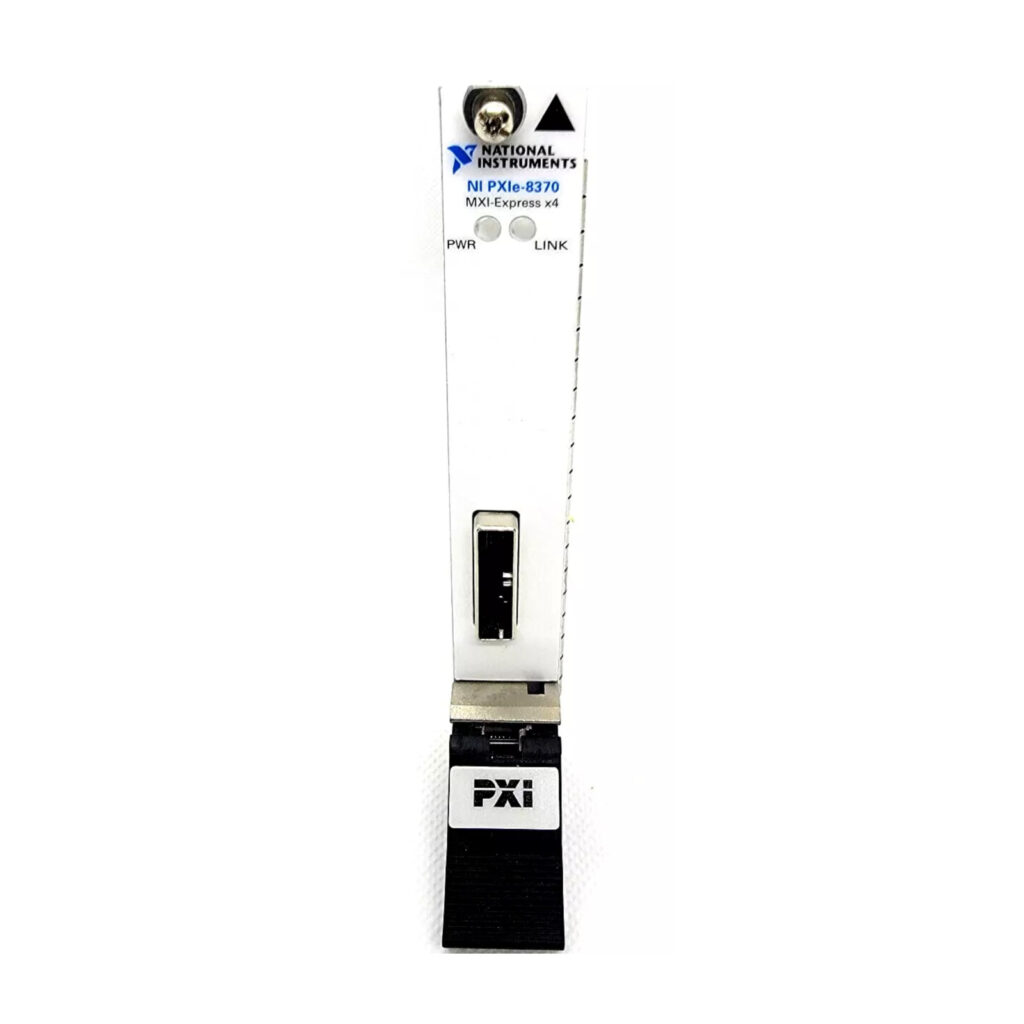

National Instruments PXIE-8370 product image 1

National Instruments PXIE-8370 product image 1 additional view

4 images: additional views below.Click to enlarge

National Instruments · PXI Express

PXIE-8370

The NI PXIe-8370 is a chassis-side PXI Express remote control module with a copper MXI-Express x4 interface. It connects a PXI Express chassis to a supported external host interface.

ManufacturerNational Instruments

ModelPXIE-8370

Part Number779720-01

Product TypePXI Remote Control Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIE-8370

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI Express

Remote linkGen1 x4 MXI-Express, copper

Chassis slotSystem controller slot

Theoretical bandwidth1 GB/s

MXI ports1

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-8370 provides the chassis-side connection for an MXI-Express x4 remote control system. NI documents host-PC configurations using a PCIe-8371 or PCIe-8372 host board and an MXI-Express x4 copper cable.

The module installs in the PXI Express system controller slot, rather than a peripheral or hybrid slot. NI also documents chassis-to-chassis expansion using a PXIe-8374 upstream interface connected to a PXIe-8370 in the downstream chassis.

Gen1 x4 MXI-Express copper interface for remote chassis control.
Single MXI port with a theoretical maximum bandwidth of 1 GB/s.
Controller-slot installation in a PXI Express chassis.
Documented host connections through NI PCIe-8371 and PCIe-8372 interfaces.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	779720-01
Bus connection	PXI Express controller
MXI technology	Gen1 x4 MXI-Express
Cable medium	Copper
Theoretical maximum MXI bandwidth	1 GB/s
Number of MXI ports	1
Operating temperature	0 to 55 °C
Supported chassis slot	System controller; not peripheral or hybrid

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis platform

MXI-Express x4

Cabled remote control interface

PXIe-8370

Chassis-side system controller-slot module

Use the documented x4 copper connection and controller slot; verify the host interface and chassis configuration before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-8370 Product PageOfficial Product Page · ni.com

Open →

Set Up Your MXI-Express x4 SystemSetup Guide · download.ni.com

Open →

MXI Controllers for PXI System ExpansionSystem Configuration Guide · ni.com

Open →

PXIe-8370 Firmware and Additional DriversTechnical resource

Open →

PXIe-8370 Product CertificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which slot does the PXIe-8370 use?

It uses the PXI Express system controller slot. NI's setup guide does not support installation in peripheral or hybrid slots.

Which host interfaces are documented for the PXIe-8370?

NI documents the PCIe-8371 and PCIe-8372 for host-PC connections, and the PXIe-8374 for upstream chassis connections, using an MXI-Express x4 copper cable.

Is the 1 GB/s bandwidth a sustained transfer specification?

No. NI labels 1 GB/s as the theoretical maximum MXI bandwidth.
