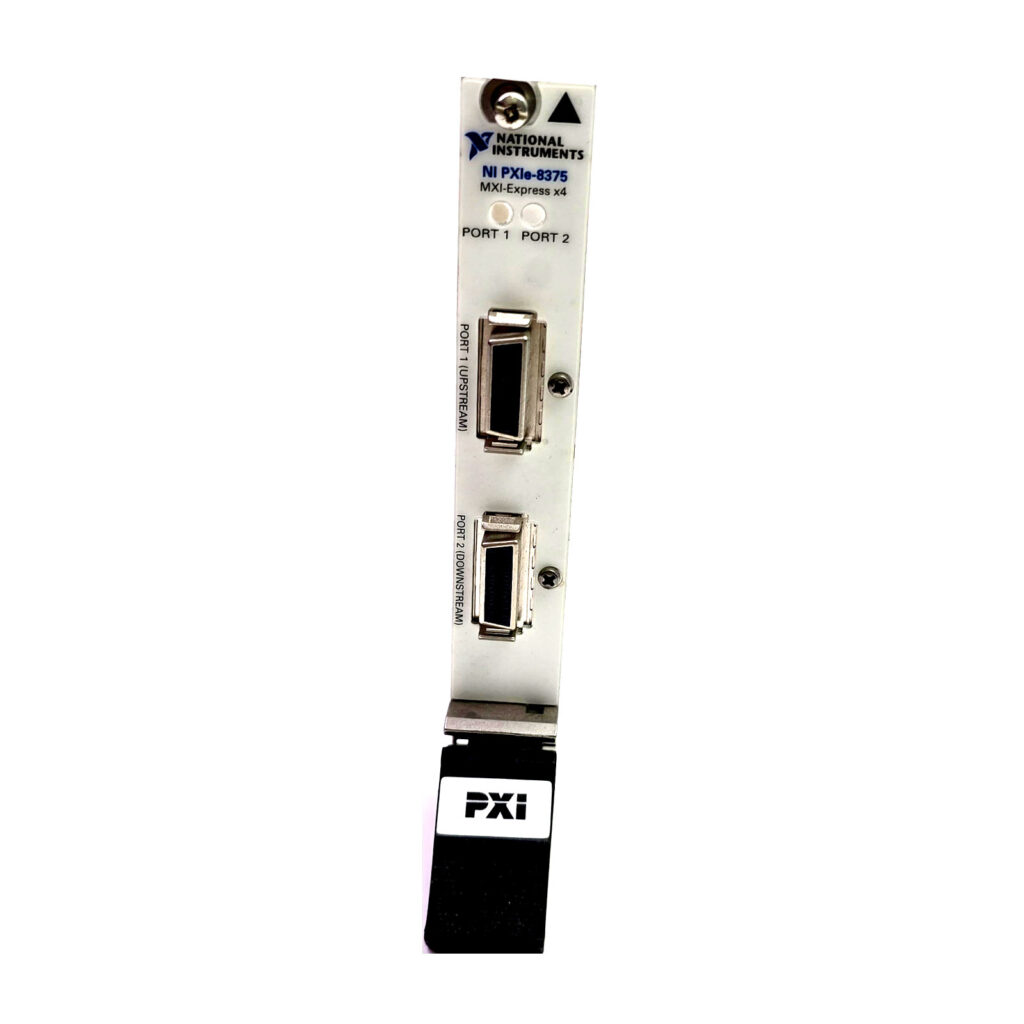

National Instruments PXIE-8375 product image 1

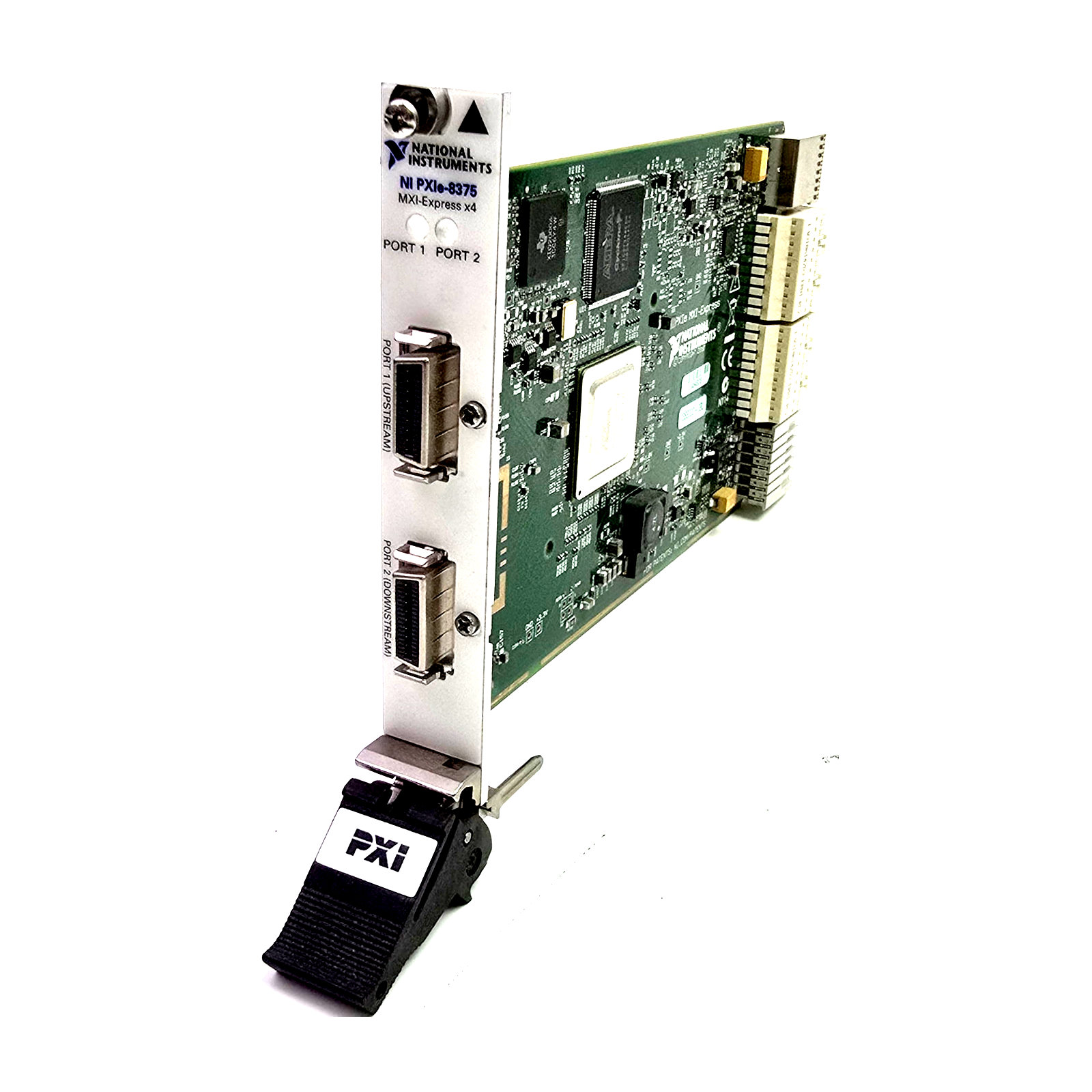

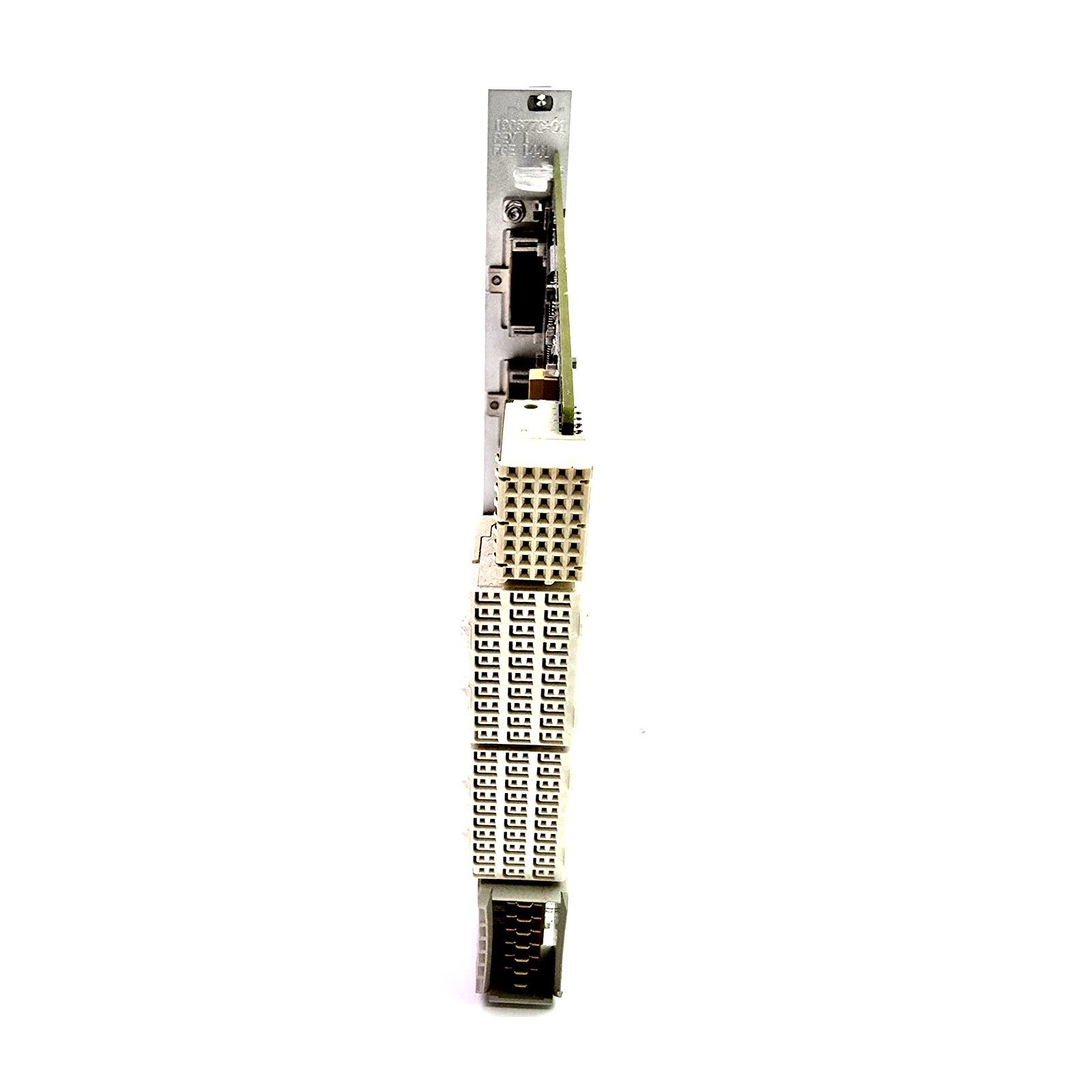

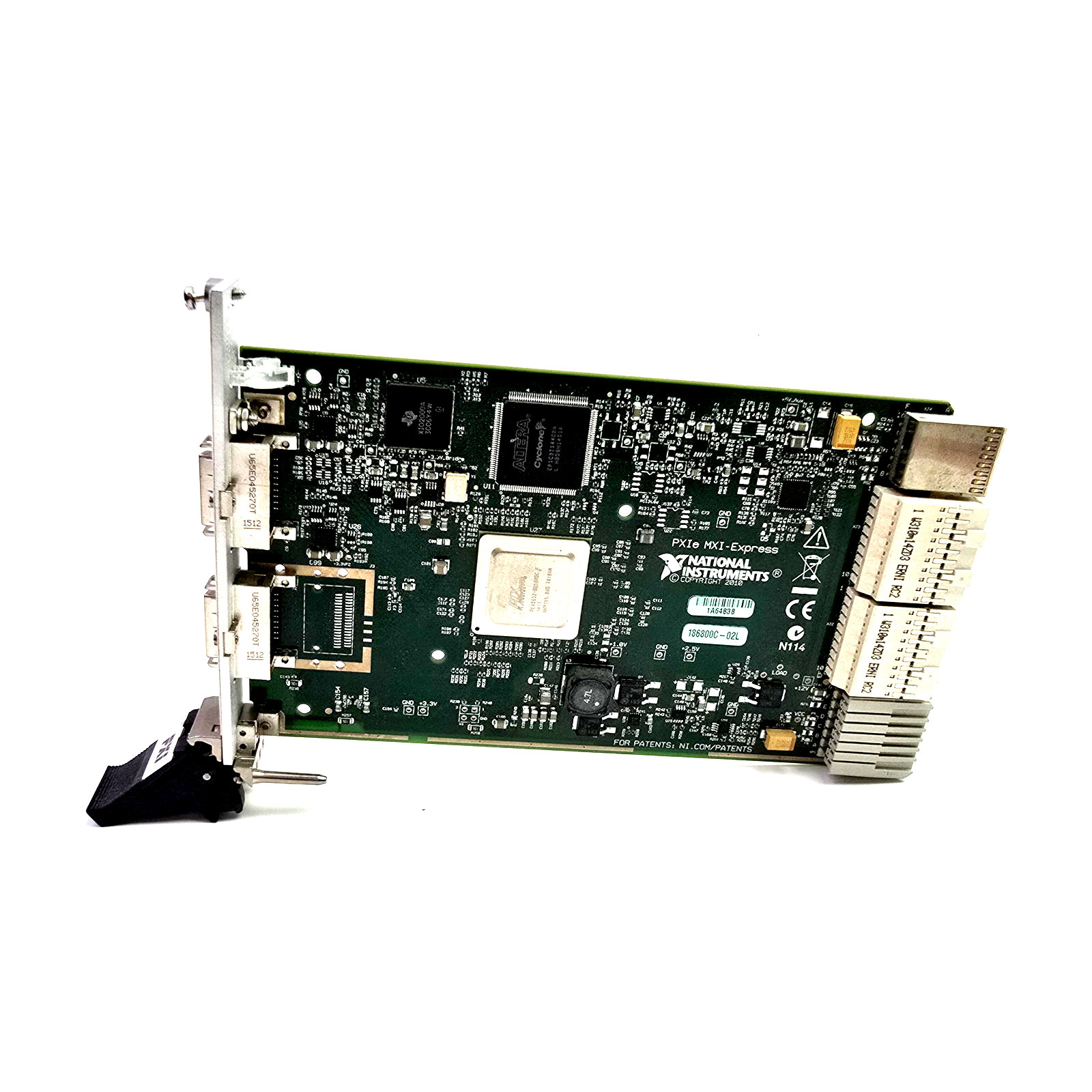

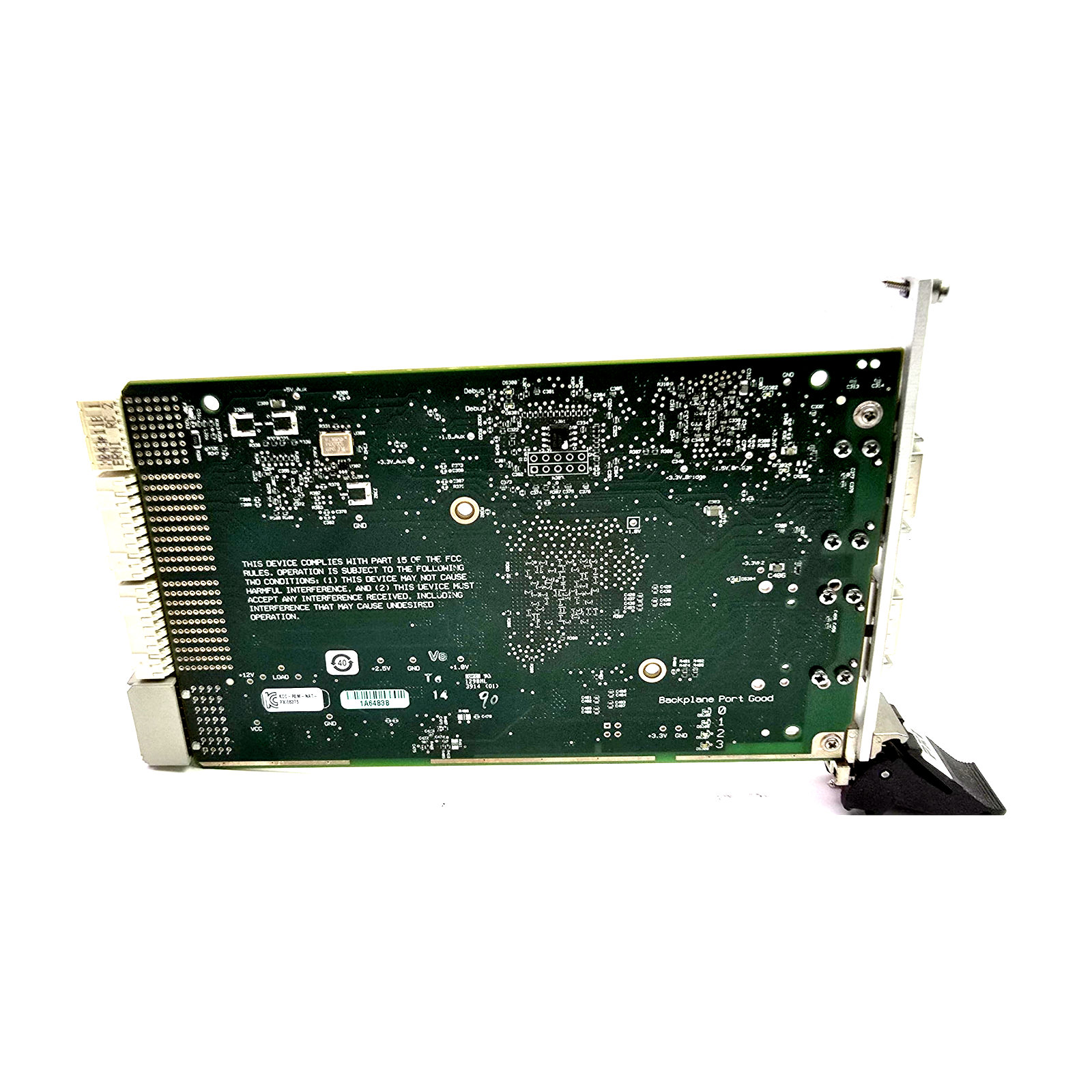

National Instruments PXIE-8375 product image 1 additional view

5 images: additional views below.Click to enlarge

National Instruments · PXI Express

PXIe-8375

The NI PXIe-8375 is a fiber-optic MXI-Express x4 remote control module for PXI Express systems.

ManufacturerNational Instruments

ModelPXIe-8375

Product TypePXI remote control module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-8375

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI Express controller interface

LinkMXI-Express x4 over fiber optic

Bandwidth1 GB/s theoretical maximum

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI documents the PXIe-8375 in slot 1 of a PXI Express chassis, linked to a desktop PCIe-8375 host interface. Additional PXIe-8375 modules can extend the connection to downstream chassis.

Fiber-optic connection provides electrical isolation between host and chassis.
Two MXI ports.
Supports daisy-chained PXI Express configurations.

Verified specifications

Technical data

Verified product specifications.

Bus connection	PXI Express Controller
MXI communication level	MXI-Express x4
Cable type	Fiber optic
Theoretical maximum MXI bandwidth	1 GB/s
MXI ports	2
Daisy chaining	Supported

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express / MXI-Express x4

Chassis platform and remote-control link

PXIe-8375

Chassis-side remote control module

Host interface

PCIe-8375 in a desktop x4 PCI Express slot

Confirm the module label and part number before system selection; NI sources disagree on the PXIe-8375 part-number assignment.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-8375 product pageProduct Page · ni.com

Open →

MXI Controllers for PXI System ExpansionData Sheet · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXIe-8375 support daisy chaining?

Yes. NI documents connections between PXIe-8375 modules for downstream chassis expansion, contrary to the legacy catalog description.

Which part number identifies this model?

Verification is required. NI's product page lists 781040-01, while its system-expansion data sheet assigns 781041-01 to PXIe-8375 and 781040-01 to PCIe-8375. Check the physical module label.
