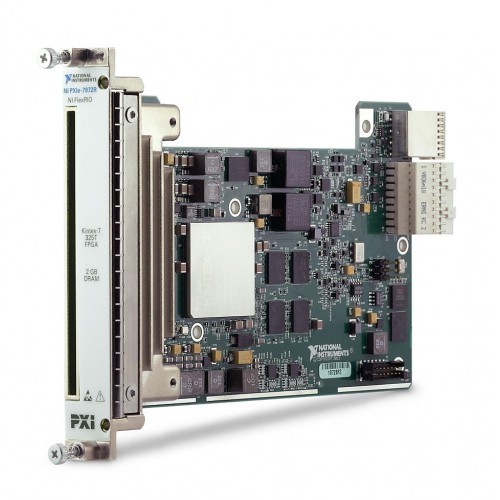

The NI PXIe-7972 is a PXI Express FlexRIO FPGA module with a Kintex-7 325T FPGA and 2 GB of onboard DRAM. NI also identifies this hardware as PXIe-7972R.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXIe-7972 supplies programmable FPGA resources for a modular FlexRIO system. A suitable FlexRIO adapter module adds application-specific analog or digital I/O.
For coprocessing or peer-to-peer streaming, the FPGA module can operate without an adapter module. The getting-started guide covers chassis installation, software setup and device recognition in NI Measurement & Automation Explorer.
Verified product specifications.
| FPGA | Kintex-7 XC7K325T |
|---|---|
| FPGA slices | 50950 slices |
| DSP slices | 840 slices |
| Block RAM | 16020 kbit |
| Onboard DRAM | 2 GB |
| PXI backplane link | PCI Express Gen2 x4 |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Chassis platform
Modular FPGA and adapter-module architecture
FPGA processing module
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI's PXIe-7972 product page lists part number 782954-01 with the description PXIe-7972R FlexRIO FPGA Module. The installation guide uses the PXIe-7972R designation.
No. NI explicitly permits operation without an adapter module for coprocessing or peer-to-peer streaming.
The PXIe-7972R has one 2 GB DRAM bank.
