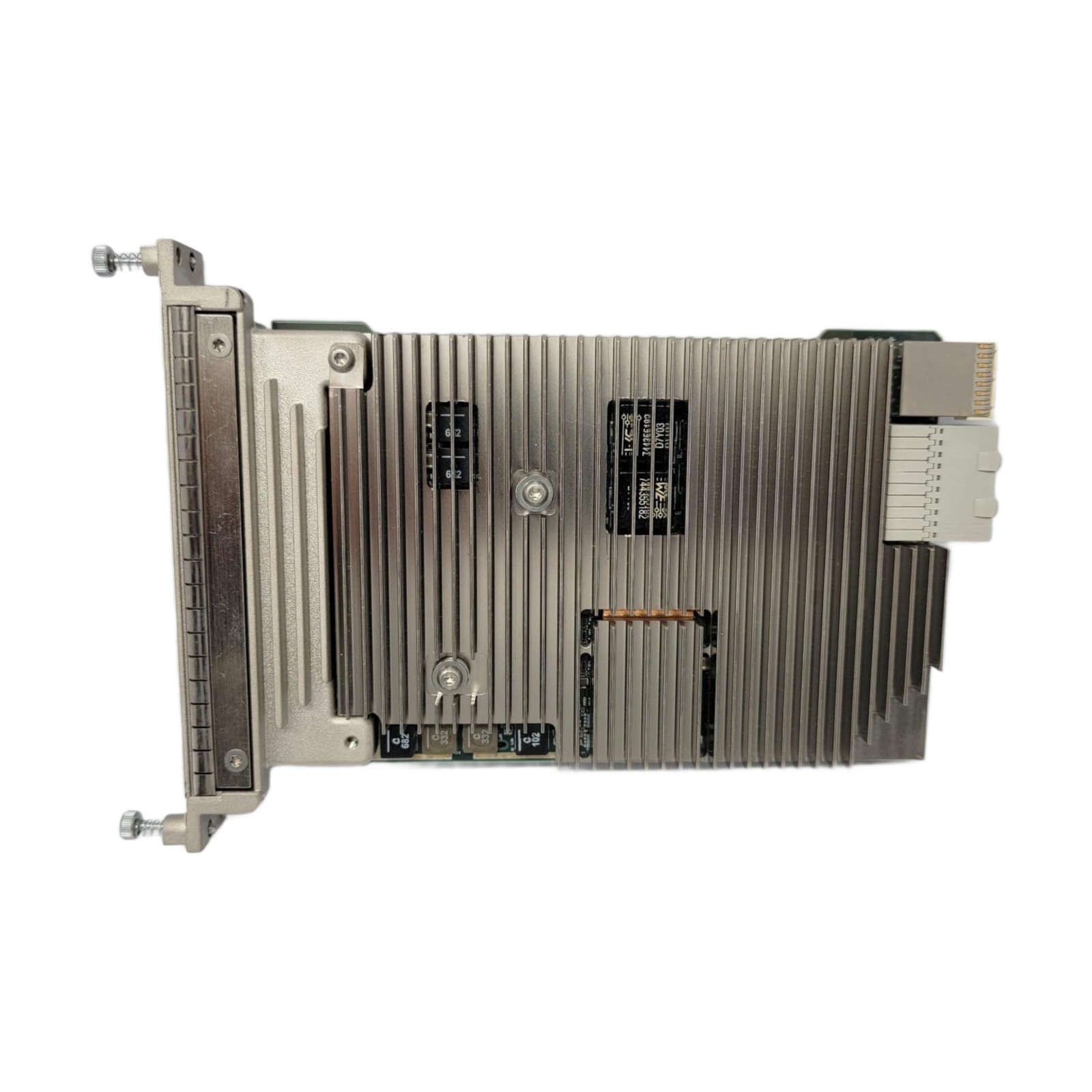

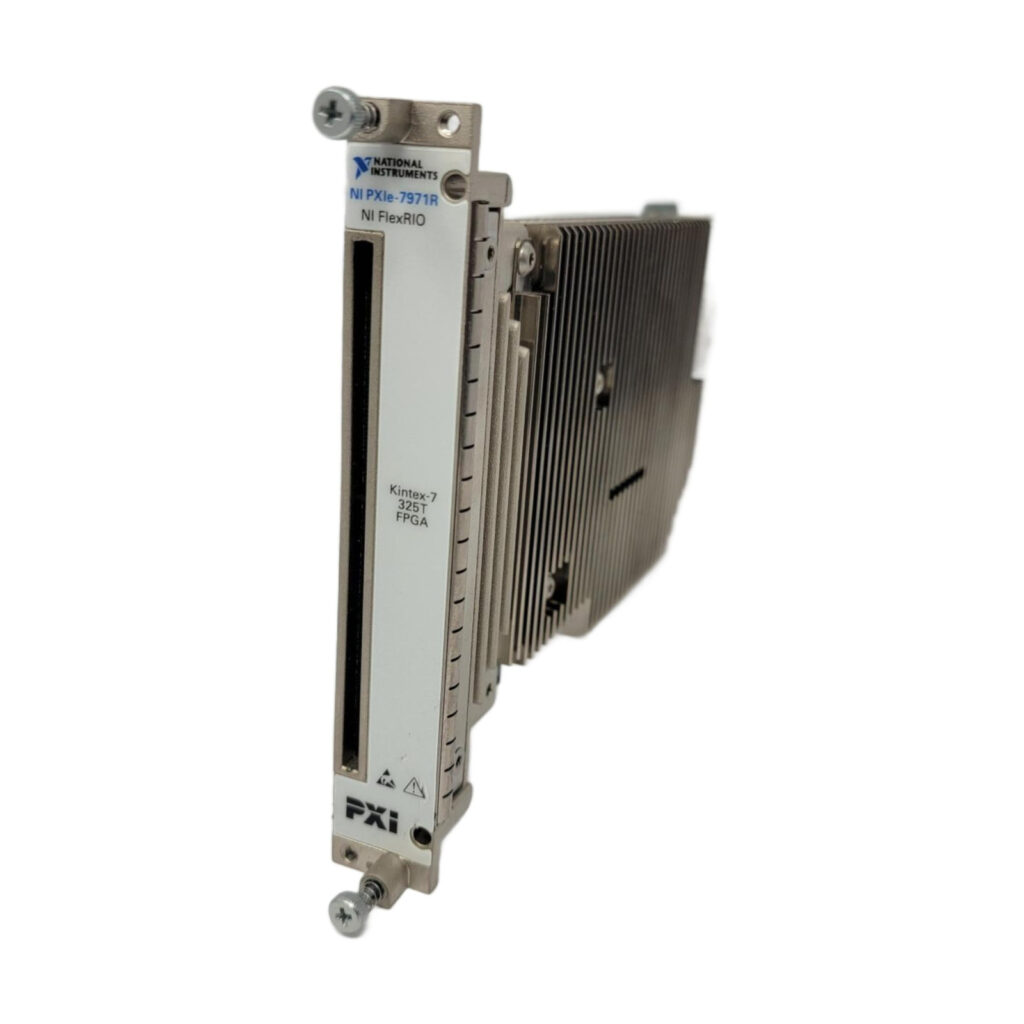

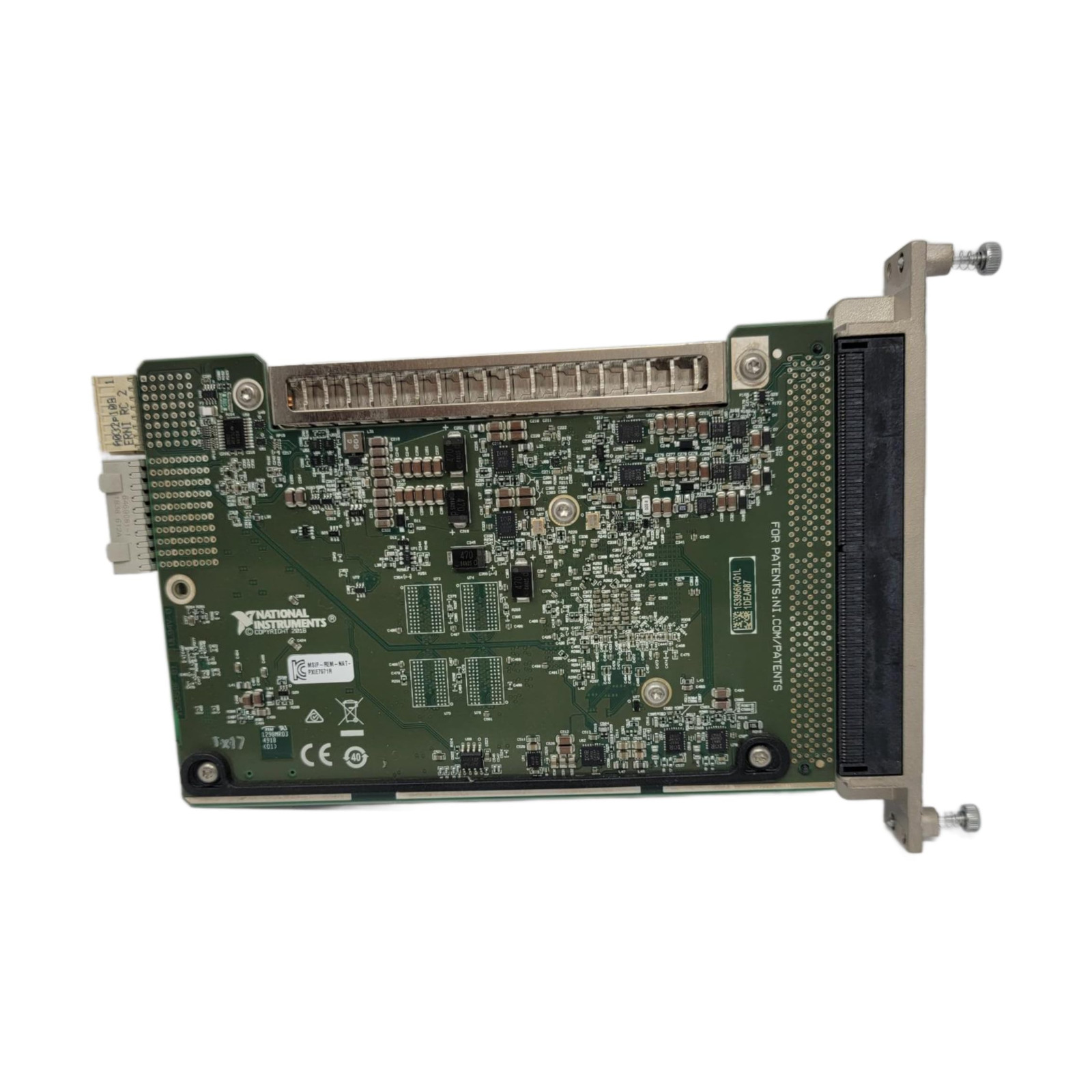

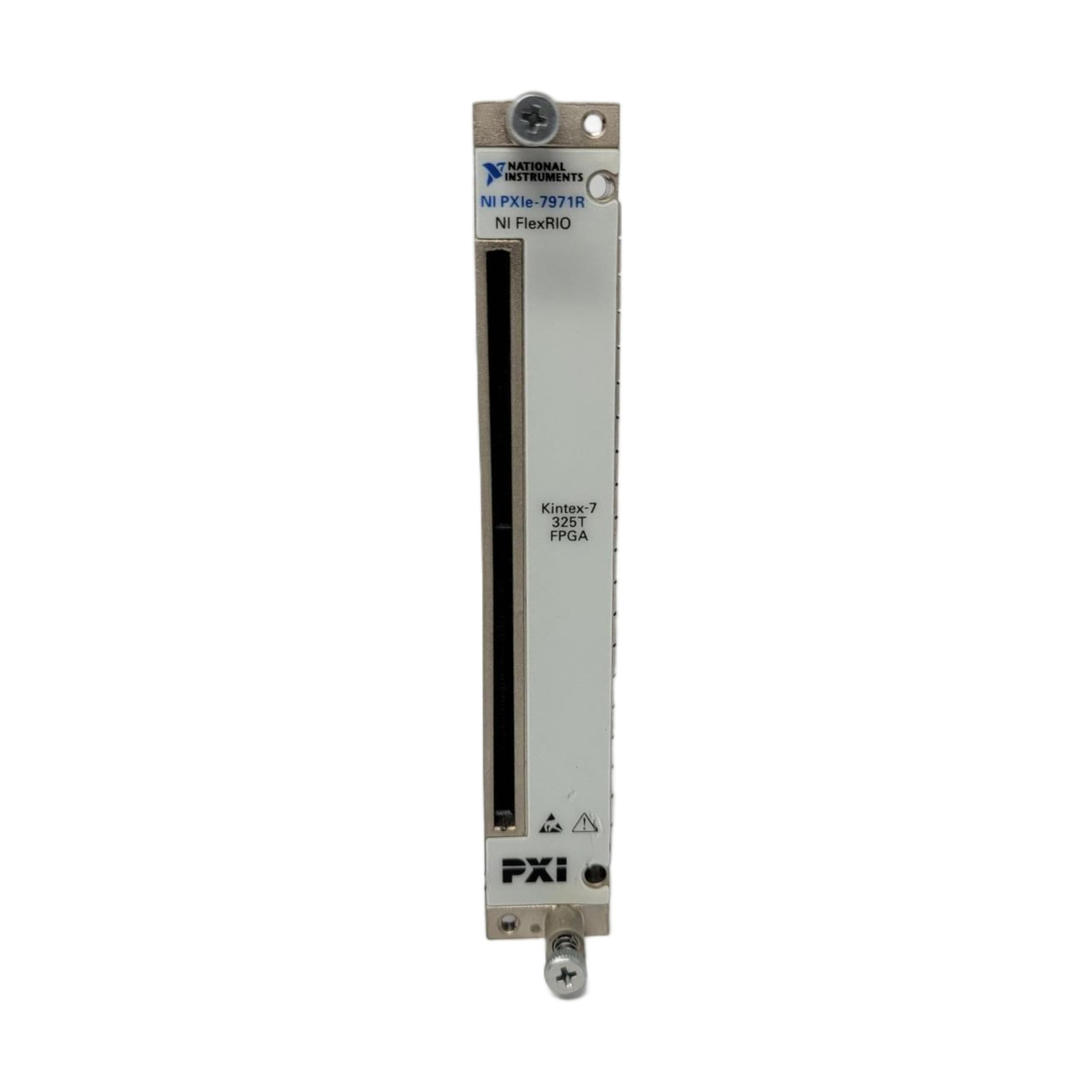

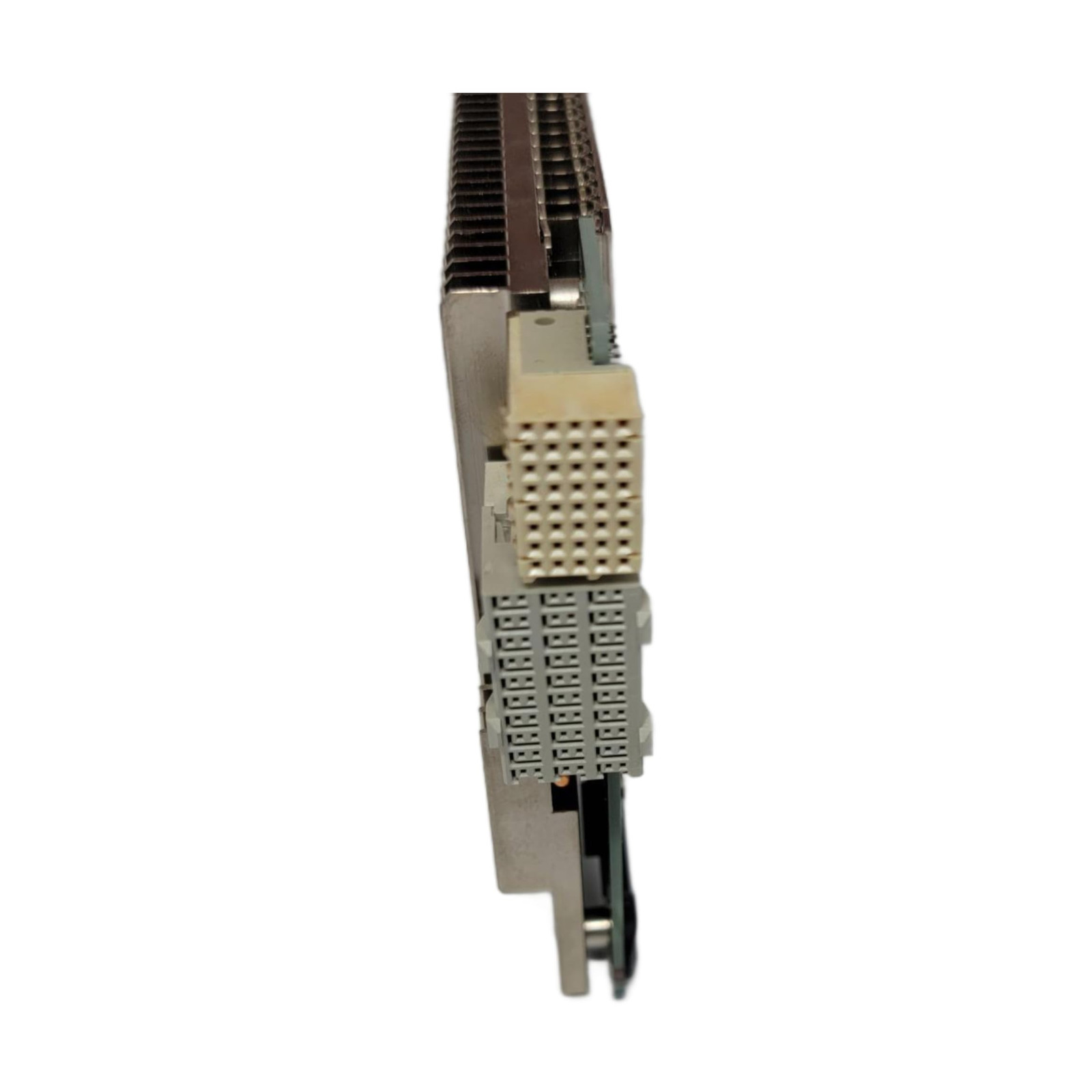

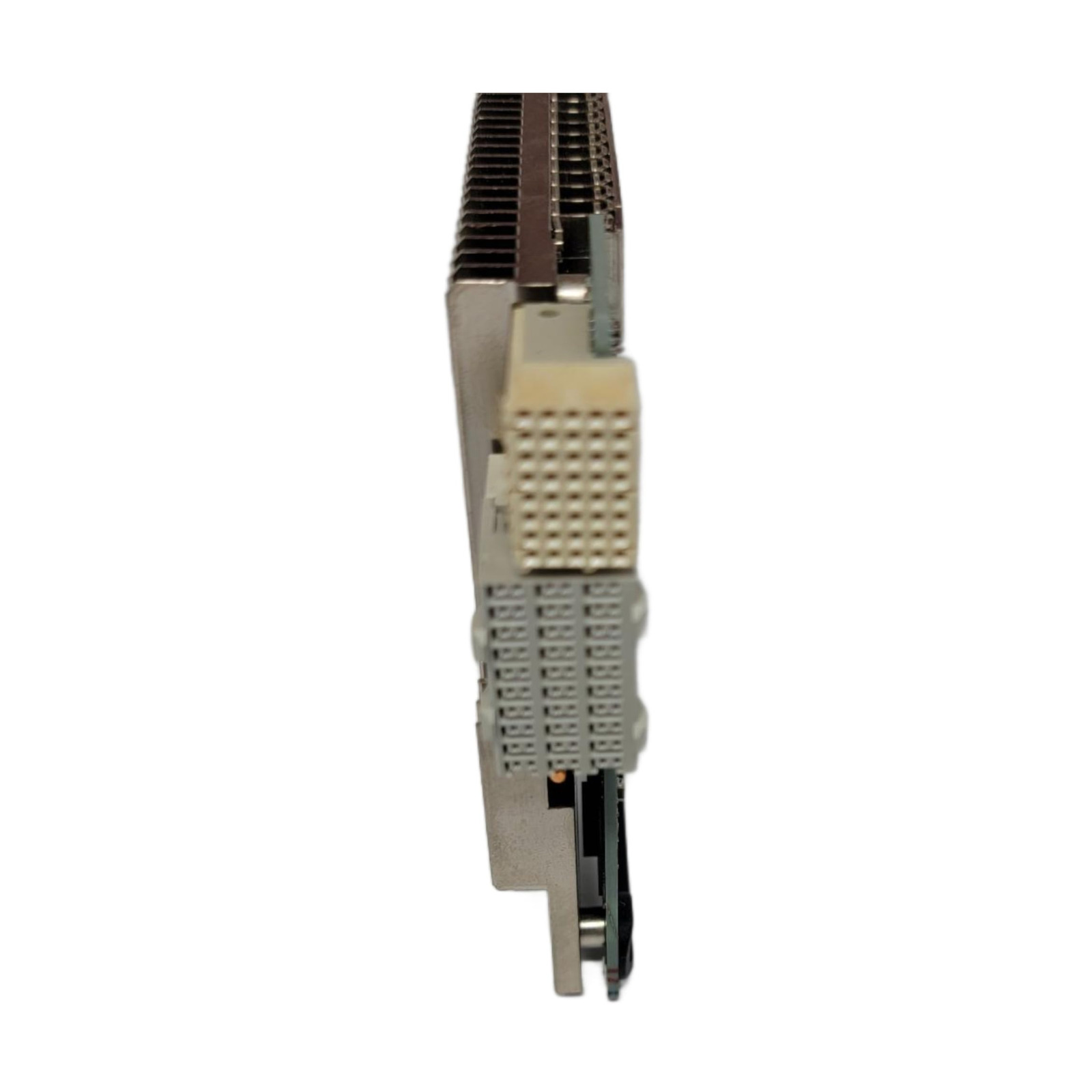

National Instruments PXIE-7971 product image 1
National Instruments PXIE-7971 product image 1 additional viewNational Instruments PXIE-7971 product image 1 additional viewNational Instruments PXIE-7971 product image 1 additional viewNational Instruments PXIE-7971 product image 1 additional viewNational Instruments PXIE-7971 product image 1 additional view
6 images: additional views below.Click to enlarge
National Instruments · PXI Express

PXIe-7971

The NI PXIe-7971 is a PXI Express FlexRIO module with a Kintex-7 325T FPGA for customizable I/O and processing in LabVIEW FPGA. NI also identifies this hardware as the PXIe-7971R.

ManufacturerNational Instruments
ModelPXIe-7971
Part Number782953-01
Product TypeFPGA module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7971

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
FPGAKintex-7 325T
FPGA slices50,950
Block RAM16,020 kbit
DSP slices840
Onboard DRAM0 MB
Backplane linkPCI Express Gen2 x4
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7971 combines programmable FPGA resources with modular FlexRIO I/O. Pairing it with an appropriate FlexRIO adapter module provides analog or digital interfaces for a reconfigurable instrument programmed in LabVIEW FPGA.

Peer-to-peer streaming enables direct transfers between supported FPGA modules or selected PXI Express modules without routing data through the host processor. The module has embedded block RAM but no onboard DRAM.

  • LabVIEW FPGA-programmable Kintex-7 architecture.
  • 136 single-ended I/O lines configurable as 68 differential pairs.
  • FlexRIO adapter-module interface for customizable analog and digital I/O.
  • Peer-to-peer streaming with supported modules.
Verified specifications

Technical data

Verified product specifications.

FPGAKintex-7 XC7K325T
FPGA slices50950 slices
Embedded block RAM16020 kbit
DSP48 slices840 slices
PXI backplane linkPCI Express Gen2 x4
General-purpose I/O136 single-ended, 68 differential, or a combination
Maximum single-ended I/O data rate400 Mb/s
Maximum differential I/O data rate1 Gb/s for LVDS
Slot compatibilityx4, x8 and x16 PXI Express or PXI Express hybrid slots
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis and backplane platform

FlexRIO PXIe-7971

Programmable FPGA module

Programming environment

LabVIEW FPGA

Check the selected adapter module's electrical requirements and documentation before connecting signals.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-7971 Product PageProduct Page · ni.com
Open →
NI PXIe-7971R SpecificationsSpecifications PDF · download.ni.com
Open →
Components of a FlexRIO System with Modular I/OTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXIe-7972View product →
Related model
PXIe-7975View product →
Related model
PXIe-7976View product →

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why does the documentation use PXIe-7971R?

NI's PXIe-7971 product page describes part number 782953-01 as the PXIe-7971R FlexRIO FPGA Module. The specifications document uses that R-suffixed designation.

Does the PXIe-7971 have onboard DRAM?

No. NI specifies 0 MB of DRAM; the FPGA includes 16,020 kbit of embedded block RAM.

Which chassis slots support this module?

NI specifies x4, x8 and x16 PXI Express slots or PXI Express hybrid slots.
