NI (National Instruments) PXIe-5820 500 MHz, 1 GHz I/Q Bandwidth, Baseband PXI Vector Signal Transceiver

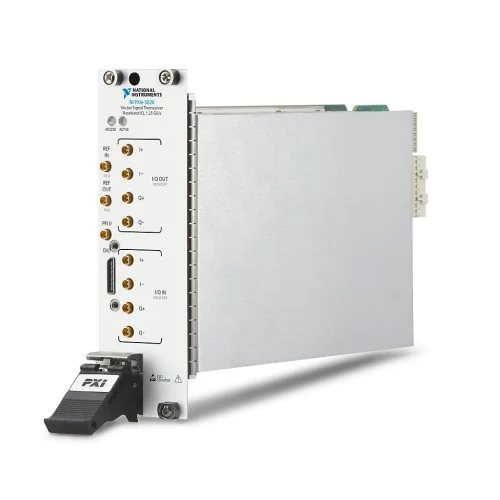

1 image: Click to enlarge

NI (National Instruments) · PXI Express

PXIe-5820

The NI PXIe-5820 is a baseband PXI Express vector signal transceiver with a 500 MHz frequency range and 1 GHz I/Q bandwidth. It combines I/Q generation and acquisition with a user-programmable FPGA in a two-slot module.

ManufacturerNI (National Instruments)

ModelPXIe-5820

Part Number783967-01 · 789180-01

Product Type500 MHz, 1 GHz I/Q Bandwidth, Baseband PXI Vector Signal Transceiver

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5820

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

RF Generator Frequency Range0 MHz to 500 MHz

RF Generator Instantaneous Bandwidth1 GHz

I/O TypeBaseband

Number of Output Channels1

Maximum Output Power15 dBm

Bus ConnectionPXI Express

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-5820 combines a wideband I/Q digitizer, a wideband I/Q arbitrary waveform generator, and a high-performance user-programmable FPGA in a single two-slot PXI Express module.

This model provides baseband I/O and supports peer-to-peer streaming. Its baseband role is an important distinction when selecting equipment for a system that also requires RF-frequency generation or analysis.

Integrated wideband I/Q digitizer and I/Q arbitrary waveform generator.
User-programmable FPGA integrated into the transceiver module.
1 GHz I/Q bandwidth for baseband signal generation and acquisition.
Two-slot PXI Express module with peer-to-peer streaming support.

Verified specifications

Technical data

Verified product specifications.

RF Generator Frequency Range	0 MHz to 500 MHz
RF Generator Instantaneous Bandwidth	1 GHz
I/O Type	Baseband
Number of Output Channels	1
Maximum Output Power	15 dBm
Bus Connection	PXI Express
Module Width	2
Supports Peer To Peer Streaming	Yes
NI part numbers	783967-01, 789180-01, 789179-01
