NI (National Instruments) PXIe-5646 6 GHz, 200 MHz Bandwidth, RF PXI Vector Signal Transceiver

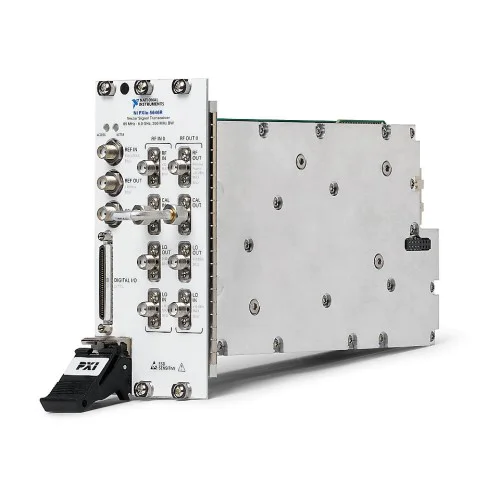

1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-5646

The NI PXIe-5646 is a PXI Express RF vector signal transceiver combining signal generation, signal analysis, and FPGA-based real-time processing. Its generator and analyzer each cover 65 MHz to 6 GHz with 200 MHz instantaneous bandwidth.

ManufacturerNI (National Instruments)
ModelPXIe-5646
Part Number784759-01
Product Type6 GHz, 200 MHz Bandwidth, RF PXI Vector Signal Transceiver
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5646

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
RF Generator Frequency Range65 MHz to 6 GHz
RF Generator Instantaneous Bandwidth200 MHz
RF Analyzer Frequency Range65 MHz to 6 GHz
RF Analyzer Instantaneous Bandwidth200 MHz
Generator Tuning Time (Typical)0.95 ms
I/O TypeRF
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5646 combines a vector signal generator and vector signal analyzer with FPGA-based real-time signal processing and control in a single instrument. Its software-defined radio architecture provides integrated RF generation and acquisition within the PXI Express platform.

Both RF paths cover 65 MHz to 6 GHz and provide 200 MHz instantaneous bandwidth. The module also supports peer-to-peer streaming. The preserved NI part number is 784759-01, identified in the supplied structured record as PXIe-5646R VST, 200 MHz BW.

  • Integrated vector signal generation and vector signal analysis in one PXI Express instrument.
  • 65 MHz to 6 GHz frequency coverage for both the RF generator and analyzer.
  • 200 MHz instantaneous bandwidth on both RF paths.
  • FPGA-based real-time signal processing and control.
  • Supports peer-to-peer streaming.
Verified specifications

Technical data

Verified product specifications.

RF Generator Frequency Range65 MHz to 6 GHz
RF Generator Instantaneous Bandwidth200 MHz
RF Analyzer Frequency Range65 MHz to 6 GHz
RF Analyzer Instantaneous Bandwidth200 MHz
Generator Tuning Time (Typical)0.95 ms
I/O TypeRF
Number of Input Channels1
Maximum Output Power15 dBm
Bus ConnectionPXI Express
Module Width3
Supports Peer To Peer StreamingYes
Analyzer Tuning Time (Typical)1.2 ms
NI part numbers784759-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-5646

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PXIe-5668View product →
Related model
PXIe-5820View product →

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of instrument is the PXIe-5646?

It is a PXI Express RF vector signal transceiver combining a vector signal generator, a vector signal analyzer, and FPGA-based real-time processing.

What frequency range does the PXIe-5646 cover?

Both the RF generator and RF analyzer cover 65 MHz to 6 GHz.

What is the instantaneous bandwidth?

The generator and analyzer each provide 200 MHz instantaneous bandwidth.

Does the PXIe-5646 support peer-to-peer streaming?

Yes. Peer-to-peer streaming support is recorded in the preserved verified specifications.
