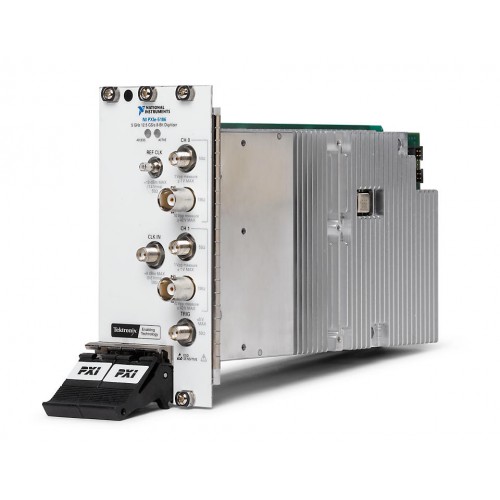

NI (National Instruments) PXIe-5186 PXIe, 5 GHz, 12.5 GS/s, 8-Bit PXI Oscilloscope
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5186

The NI PXIe-5186 is a two-channel PXI Express oscilloscope with 5 GHz maximum bandwidth, up to 12.5 GS/s sampling, and 8-bit analog input resolution.

ManufacturerNI (National Instruments)
ModelPXIe-5186
Part Number782058-12 · 782058-11
Product TypePXIe, 5 GHz, 12.5 GS/s, 8-Bit PXI Oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5186

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Analog Input Impedance50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth5 GHz
Voltage Input Channels2
Maximum Sample Rate12.5 GS/s
Analog Input Voltage Range-1 V to 1 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5186 brings two-channel waveform acquisition to a PXI Express system. Its 5 GHz maximum analog bandwidth, 12.5 GS/s maximum sample rate, and 8-bit resolution define its core acquisition capabilities.

The instrument provides triggering, PXI synchronization, onboard memory, and data streaming capabilities. Consult the model-specific specifications and NI getting-started guide when planning system integration and acquisition settings.

  • Maximum oscilloscope bandwidth of 5 GHz.
  • Sampling at up to 12.5 GS/s with 8-bit analog input resolution.
  • Two voltage input channels with AC/DC coupling.
  • PXI Express interface for integration into a PXI measurement system.
  • Triggering, PXI synchronization, and data streaming capabilities.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Analog Input Impedance50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth5 GHz
Number of Voltage Input Channels2
Maximum Sample Rate12.5 GS/s
Analog Input Voltage Range-1 V to 1 V
Analog Input Resolution8 bits
CableSense™No
Supported Hardware PlatformPXI
ReconfigurableNo
Supports Peer To Peer StreamingNo
Analog Input CouplingAC/DC
EnclosedYes
Onboard Digital DownconverterNo
NI part numbers782058-12, 782058-11
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-5186

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Top 5 FlexRIO Modules for High-Speed A/D ConversionTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI PXIe-5186?

It is a two-channel PXI Express oscilloscope with 5 GHz maximum bandwidth, up to 12.5 GS/s sampling, and 8-bit resolution.

What analog input coupling does it provide?

The PXIe-5186 provides AC/DC analog input coupling.

Does the PXIe-5186 support peer-to-peer streaming?

No. The retained verified specifications list peer-to-peer streaming support as No; this is distinct from the instrument's general data streaming capabilities.

Where can I find specifications and installation guidance?

The official documentation section links to the NI PXIe-5186 specifications and NI High-Speed Digitizers Getting Started Guide, along with dimensional drawings and the letter of volatility.
