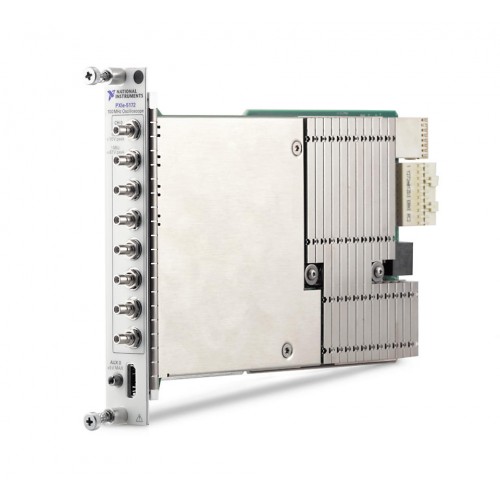

NI (National Instruments) PXIe-5172 PXIe, 100 MHz, 4- or 8-Channel, 14-Bit, Kintex-7 325T or 410T FPGA Reconfigurable PXI Oscilloscope
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5172

The NI PXIe-5172 is a reconfigurable PXI Express oscilloscope with 100 MHz bandwidth, 250 MS/s maximum sampling, and 14-bit resolution. The model includes 4- and 8-channel configurations; the configuration of the individual unit must be confirmed.

ManufacturerNI (National Instruments)
ModelPXIe-5172
Part Number784225-01 · 784226-01
Product TypePXIe, 100 MHz, 4- or 8-Channel, 14-Bit, Kintex-7 325T or 410T FPGA Reconfigurable PXI Oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5172

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Analog Input Impedance50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth100 MHz
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-40 V to 40 V
Analog Input Resolution14 bits
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5172 combines oscilloscope acquisition with a reconfigurable FPGA architecture in the PXI platform. Its PXI Express interface places it within a modular instrumentation system rather than a standalone bench instrument.

The model offers 100 MHz maximum bandwidth and 14-bit acquisition at up to 250 MS/s. AC/DC coupling and 50 Ω or 1 MΩ input impedance provide input-configuration options, while peer-to-peer streaming supports data movement within a suitable system.

Channel count and FPGA configuration vary within the PXIe-5172 model. Confirm the exact part number and hardware configuration before specifying channel count, onboard memory, or FPGA resources for a system.

  • 100 MHz maximum oscilloscope bandwidth with a maximum sample rate of 250 MS/s.
  • 14-bit analog input resolution.
  • 50 Ω and 1 MΩ input impedance options with AC/DC coupling.
  • Reconfigurable architecture for FPGA-based instrumentation.
  • Supports peer-to-peer streaming.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Analog Input Impedance50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth100 MHz
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-40 V to 40 V
Analog Input Resolution14 bits
CableSense™No
Supported Hardware PlatformPXI
ReconfigurableYes
Supports Peer To Peer StreamingYes
Analog Input CouplingAC/DC
EnclosedYes
NI part numbers784225-01, 784226-01, 784224-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-5172

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Top 5 FlexRIO Modules for High-Speed A/D ConversionTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What are the PXIe-5172 bandwidth, sampling rate, and resolution?

The PXIe-5172 has a maximum bandwidth of 100 MHz, a maximum sample rate of 250 MS/s, and 14-bit analog input resolution.

Does every PXIe-5172 have the same channel count?

No. The model includes 4- and 8-channel configurations. Confirm the part number and configuration of the individual module rather than relying on the model name alone.

Which input impedance and coupling options are supported?

The listed input impedance options are 50 Ω and 1 MΩ, with AC and DC input coupling.

Does the PXIe-5172 support reconfiguration and peer-to-peer streaming?

Yes. The existing verified product data identifies the PXIe-5172 as reconfigurable and supporting peer-to-peer streaming.

Articles mentioning this model
