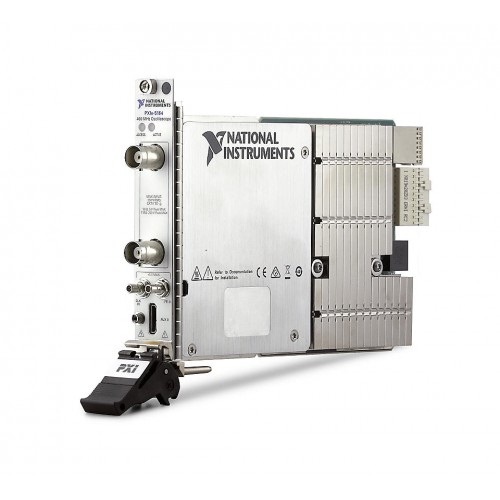

NI (National Instruments) PXIe-5164 PXIe, 400 MHz, 1 GS/s, 14-Bit PXI Oscilloscope
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5164

The NI PXIe-5164 is a two-channel PXI Express oscilloscope with 400 MHz bandwidth, 14-bit resolution, and a maximum sample rate of 1 GS/s.

ManufacturerNI (National Instruments)
ModelPXIe-5164
Part Number784183-01
Product TypePXIe, 400 MHz, 1 GS/s, 14-Bit PXI Oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5164

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Analog Input Impedance50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth400 MHz
Voltage Input Channels2
Maximum Sample Rate1 GS/s
Analog Input Voltage Range-50 V to 50 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5164 provides two voltage input channels in the PXI platform through a PXI Express interface. Its analog inputs support AC/DC coupling and selectable 50 Ohm or 1 MOhm impedance.

The instrument combines 1.5 GB of onboard memory with a Kintex-7 410T FPGA. Its reconfigurable architecture supports peer-to-peer streaming.

  • 400 MHz maximum oscilloscope bandwidth.
  • Maximum sample rate of 1 GS/s with 14-bit analog input resolution.
  • Two voltage input channels with AC/DC coupling.
  • Selectable 50 Ohm or 1 MOhm input impedance.
  • 1.5 GB of onboard oscilloscope memory.
  • Reconfigurable Kintex-7 410T FPGA architecture with peer-to-peer streaming support.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Analog Input Impedance50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth400 MHz
Number of Voltage Input Channels2
Maximum Sample Rate1 GS/s
Analog Input Voltage Range-50 V to 50 V
Oscilloscope Onboard Memory Size1.5 GB
Analog Input Resolution14 bits
FPGAKintex-7 410T
CableSense™No
Supported Hardware PlatformPXI
ReconfigurableYes
Supports Peer To Peer StreamingYes
Analog Input CouplingAC/DC
EnclosedYes
Onboard Digital DownconverterNo
NI part numbers784183-01
