Home / Shop / PXIe-4139

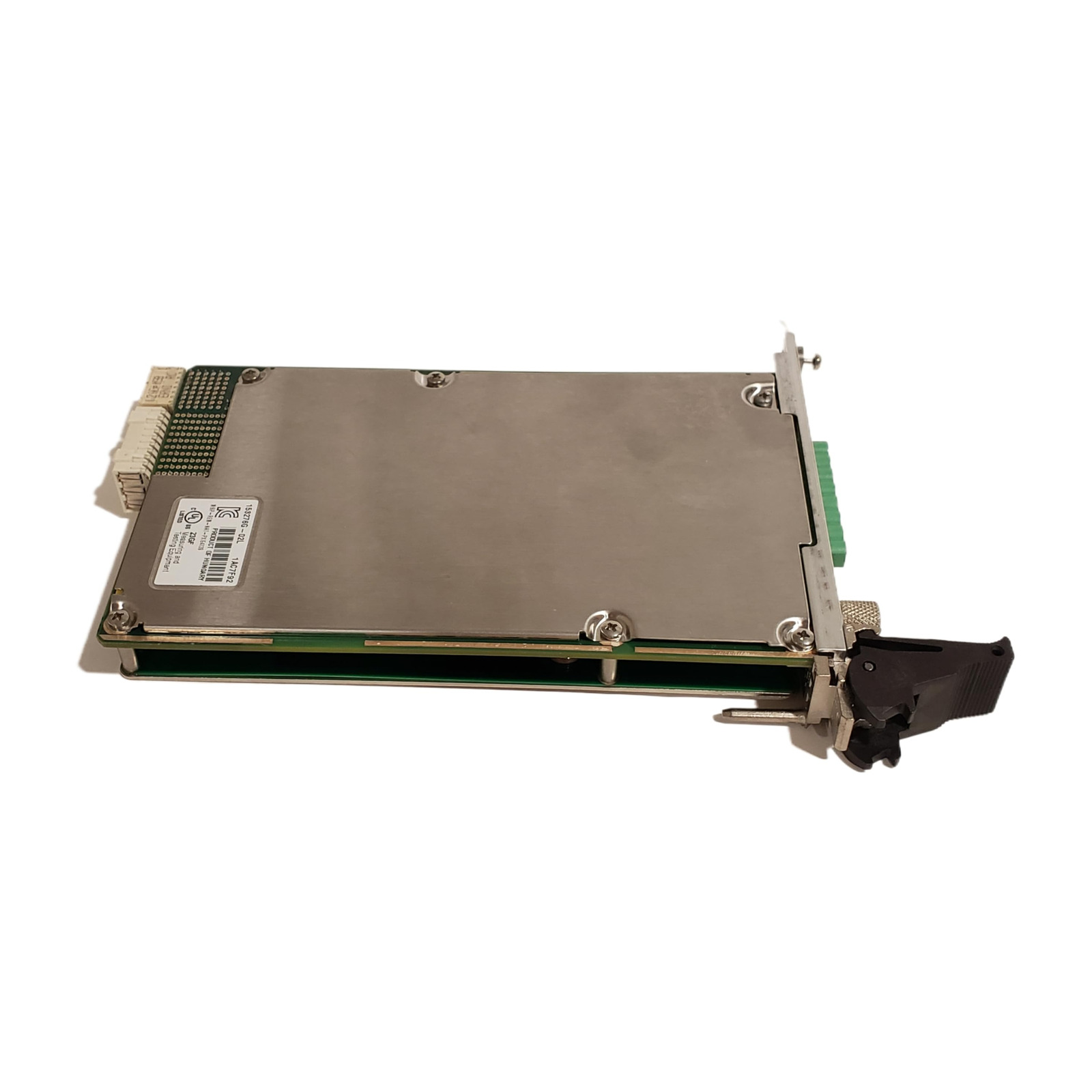

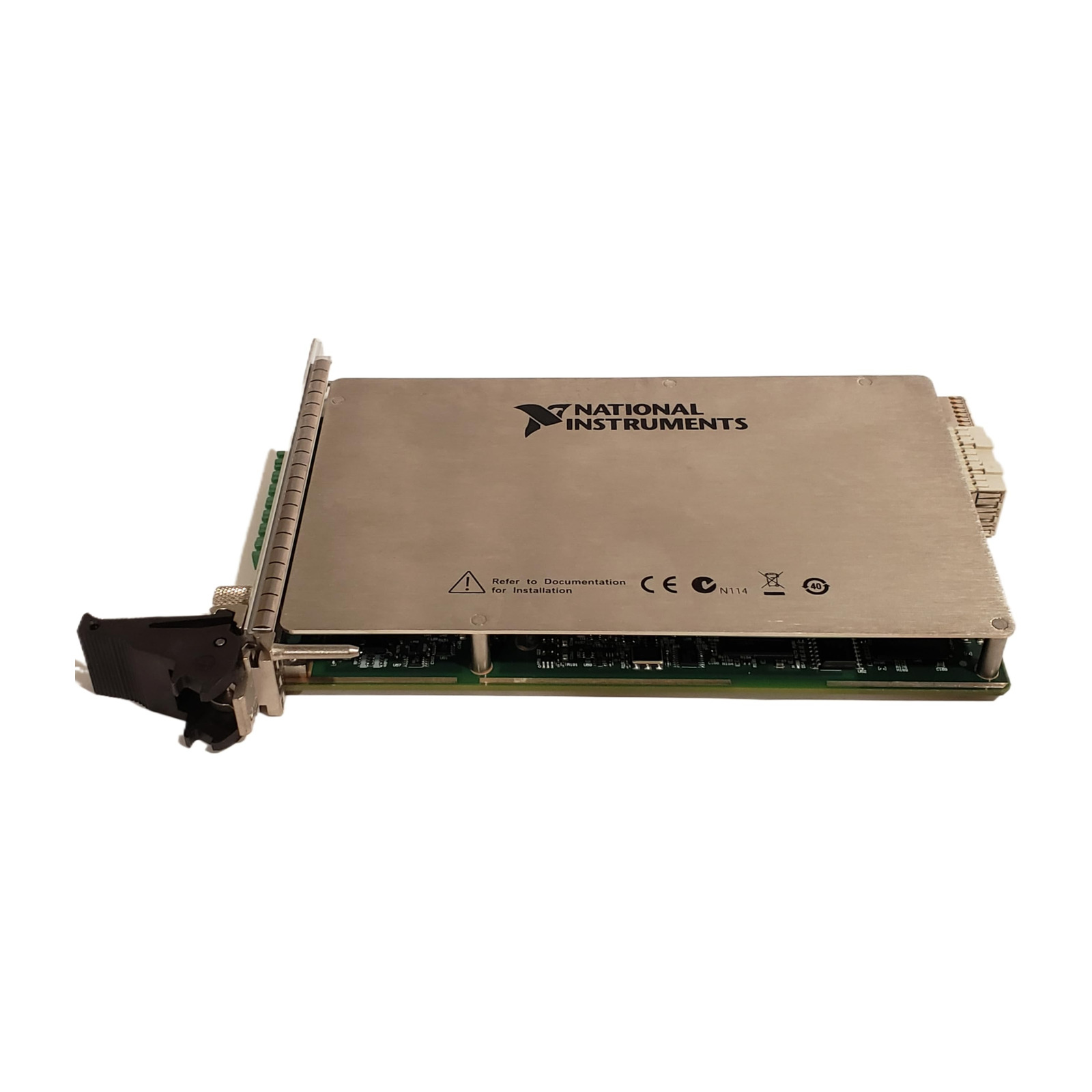

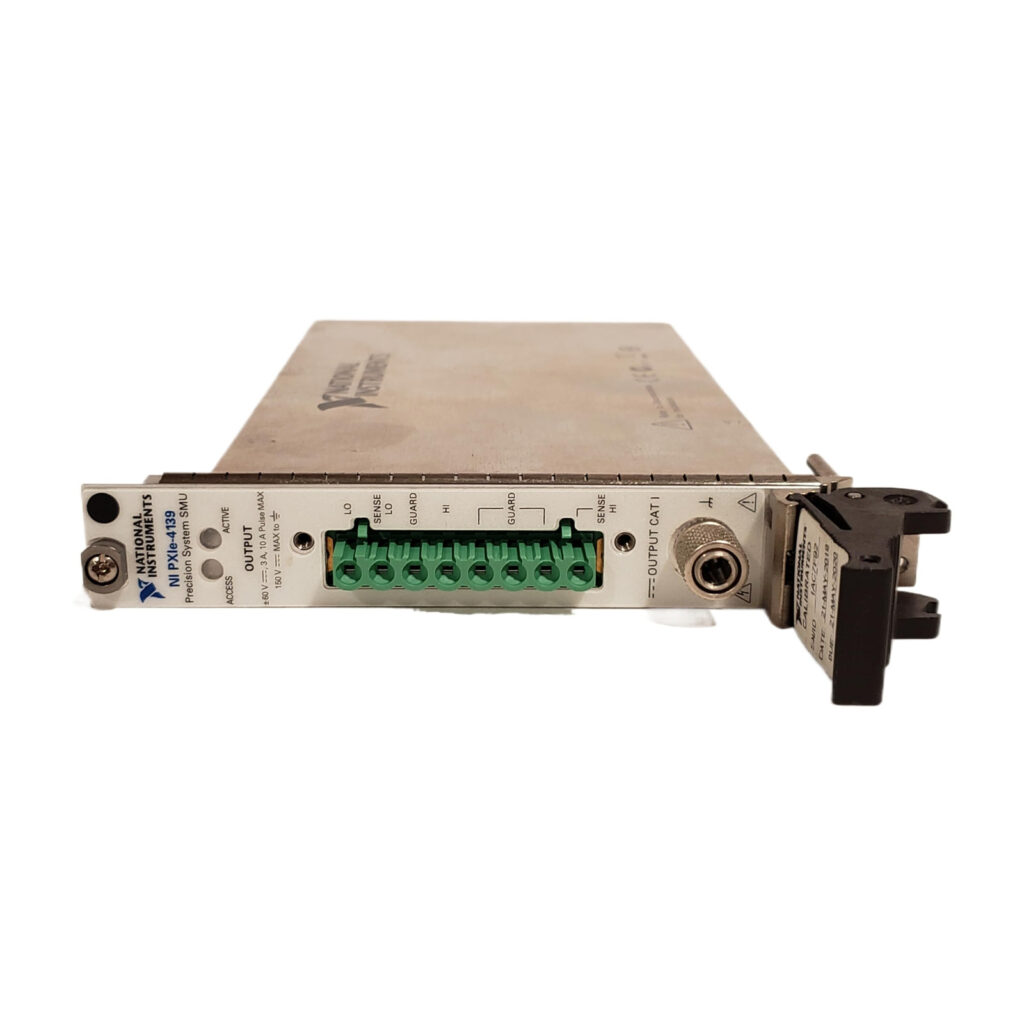

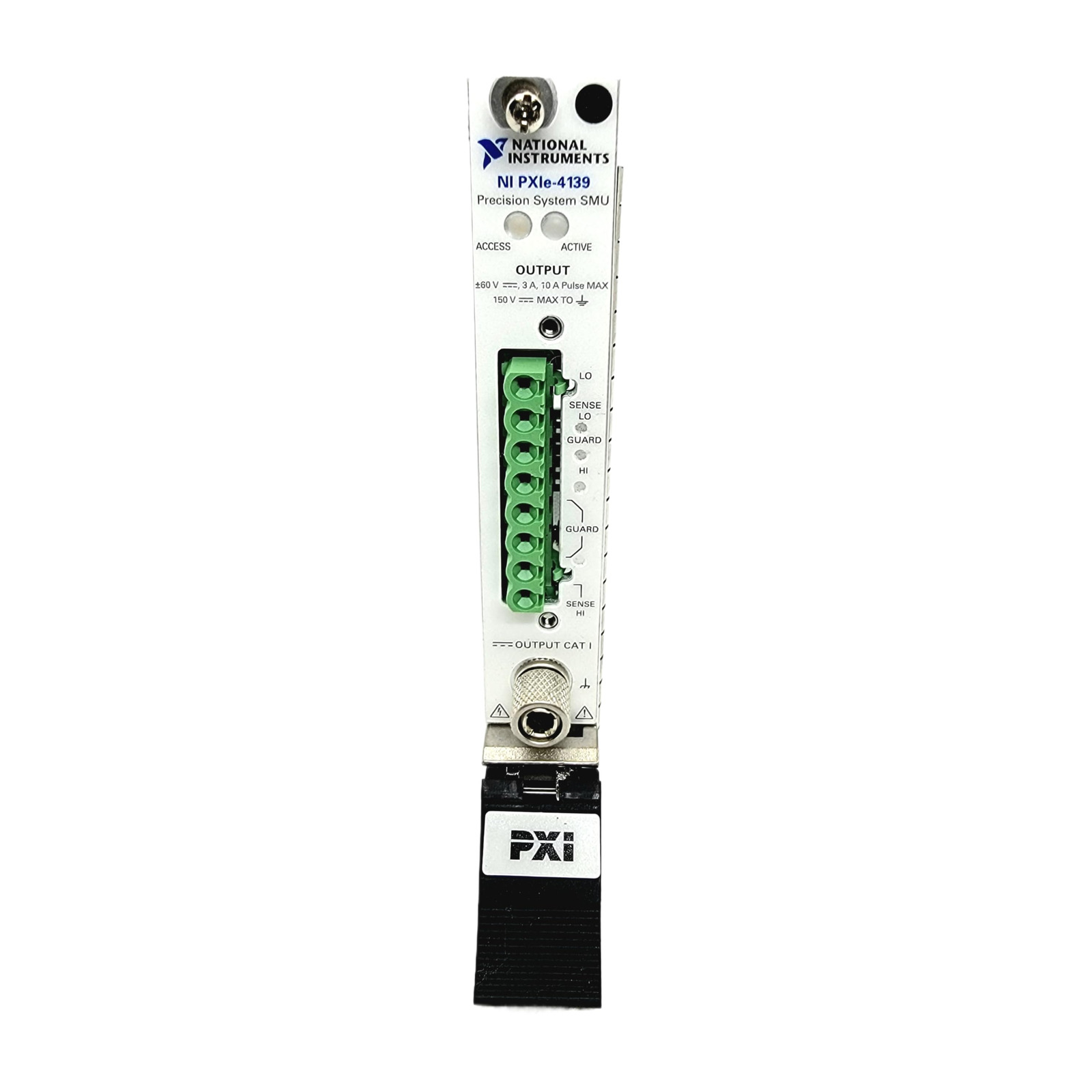

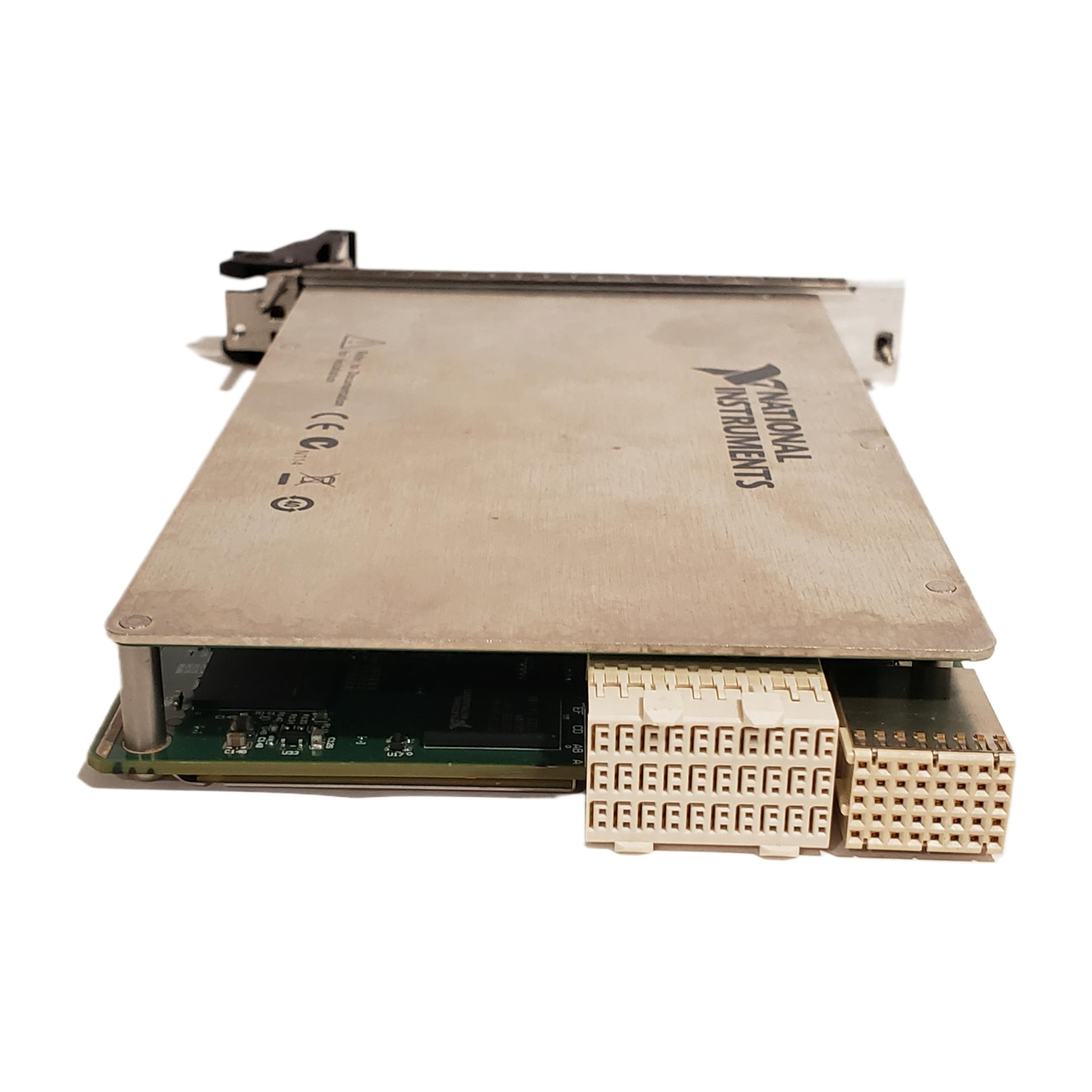

National Instruments PXIE-4139 product image 1
National Instruments PXIE-4139 product image 1 additional viewNational Instruments PXIE-4139 product image 1 additional viewNational Instruments PXIE-4139 product image 1 additional viewNational Instruments PXIE-4139 product image 1 additional view
5 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-4139

The NI PXIe-4139 is a single-channel PXI Express precision source measure unit with a ±60 V voltage range, ±3 A DC current range and ±10 A pulsed current range. It provides 100 fA current sensitivity and SourceAdapt transient-response tuning.

ManufacturerNI (National Instruments)
ModelPXIe-4139
Part Number782856-02 · 782856-03
Product TypePXIe, ±60 V, ±3 A DC, ±10 A Pulsed, 40 W DC, 100 fA Precision System PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4139

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity100 fA
Number of SMU Channels1
Voltage Range-60 V to 60 V
SourceAdaptYes
DC Current Range-3 A to 3 A
Pulsed Current Range-10 A to 10 A
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4139 integrates one source measure channel into a PXI Express module for PXI-based test systems. Its DC and pulsed current limits are distinct: ±3 A for DC operation and ±10 A for pulsed operation, with a voltage range of ±60 V.

The module supports high-precision measurements with 100 fA current resolution or high-speed acquisitions up to 1.8 MS/s. SourceAdapt technology allows transient response to be tuned to the load characteristics.

  • Single-channel precision source measure architecture.
  • Voltage range from -60 V to 60 V.
  • DC current range of ±3 A and pulsed current range of ±10 A.
  • 100 fA current sensitivity for low-current measurement tasks.
  • SourceAdapt technology for tuning transient response to load characteristics.
  • PXI Express bus connection for integration into PXI-based test systems.
Verified specifications

Technical data

Verified product specifications.

Current Sensitivity100 fA
Number of SMU Channels1
Voltage Range-60 V to 60 V
SourceAdaptYes
DC Current Range-3 A to 3 A
Pulsed Current Range-10 A to 10 A
Bus ConnectorPXI Express
Supported Hardware PlatformPXI
Bus ConnectionPXI Express
NI part numbers782856-02, 782856-03
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-4139

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

User Manual (NI)User Manual · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
PXIe-4139 operating guidance: NI user manualTechnical resource
Open →
PXIe-4139 mechanical reference: NI dimensional drawingsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many SMU channels does the PXIe-4139 have?

The PXIe-4139 has one source measure channel.

Does the ±10 A rating apply to DC operation?

No. The listed DC current range is -3 A to 3 A. The -10 A to 10 A range applies to pulsed operation. Consult the NI manual for operating limits and pulse conditions.

What does SourceAdapt do on the PXIe-4139?

SourceAdapt allows the module's transient response to be tuned to match load characteristics.

What acquisition performance is identified for this model?

The supplied structured data identifies high-speed acquisitions up to 1.8 MS/s and high-precision measurements with 100 fA current resolution. These describe different measurement capabilities, not necessarily simultaneous performance.

Which NI part numbers are listed for the PXIe-4139?

The listed NI part numbers are 782856-02 and 782856-03. Confirm the required configuration before selecting a part number.
