National Instruments · PXI

PXI-6652

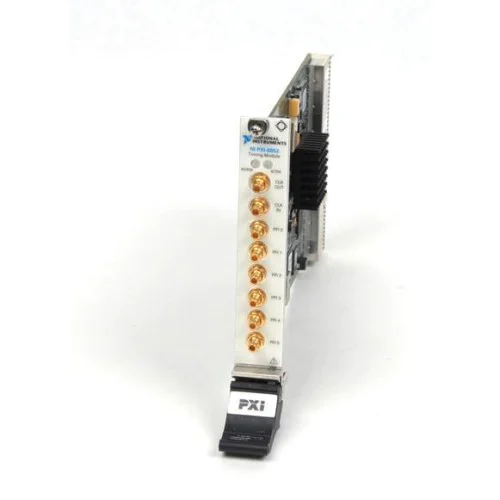

The National Instruments PXI-6652 is a TCXO-based PXI timing and synchronization module. It supports clock and trigger distribution for coordinated measurement systems.

ManufacturerNational Instruments

ModelPXI-6652

Part Number778726-01

Product TypeTiming and synchronization module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6652

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI

Onboard oscillatorTCXO

Manufacturer part number778726-01

Front-panel signal connectorsSMB for clock and trigger connections

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6652 provides timing coordination through PXI reference-clock and trigger resources. It fits systems that require multiple instruments to operate with shared timing.

NI documents the module for multi-chassis dynamic signal acquisition, where front-panel connections carry timing signals between chassis. Backplane capabilities include overriding PXI_CLK10 and phase locking to CLK10.

TCXO-based onboard clock.
Internal clock and trigger generation, plus routing of externally generated timing signals.
PXI_CLK10 backplane clock override.
Phase-lock-loop capability to the PXI CLK10 signal.

Verified specifications

Technical data

Verified product specifications.

Bus connector	PXI
Onboard clock type	TCXO
Backplane clock override	Supported: PXI_CLK10
Phase locking to CLK10	Supported

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6652

TCXO timing and synchronization module

Backplane functions

CLK10 override and phase locking

Confirm chassis timing-slot requirements and driver-version support before integration.
