National Instruments · PXI

PXI-6651

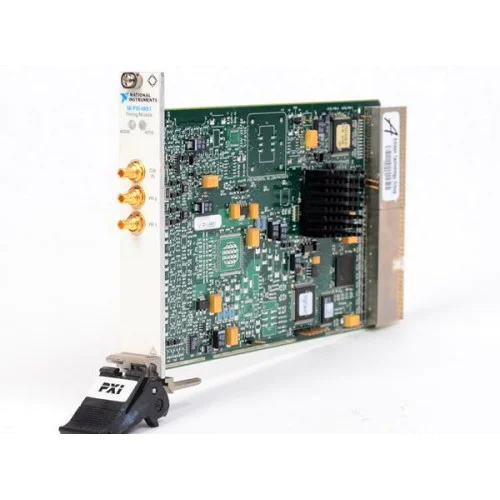

The NI PXI-6651 is a slave synchronization module for routing externally generated clock and trigger signals in multi-chassis PXI systems. It distributes signals through front-panel SMB connections and the PXI backplane rather than generating timing signals internally.

ManufacturerNational Instruments

ModelPXI-6651

Product TypeSlave PXI synchronization module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6651

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI

Timing roleSlave synchronization

Signal sourceExternally generated clocks and triggers

Front-panel connectivitySMB

Routing softwareNI-Sync

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6651 provides the slave-side routing function in a shared timing architecture. NI documents its use alongside PXI-6652 and PXI-6653 timing modules to transfer clock and trigger signals between chassis.

Signal routing is configured with NI-Sync. NI's multi-chassis DSA guidance places slave timing modules in Slot 2 when distributing the oversample clock through PXI Star; installation and routing therefore depend on the measurement architecture.

Routes externally generated timing signals without internal signal generation.
Uses front-panel SMB connections to exchange clock and trigger signals with other chassis.
Supports NI-Sync configuration of timing and trigger routes.

Verified specifications

Technical data

Verified product specifications.

Module classification	Slave PXI synchronization module
Internal signal generation	Not supported; routes externally generated signals
Front-panel connector type	SMB

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6651

Slave timing-signal routing module

Master timing modules

NI documents PXI-6652 and PXI-6653 modules as signal-generating modules in multi-chassis arrangements using PXI-6651 slave modules.

Check slot placement, signal routing, and driver support for the intended system; the PXI-6651 requires externally generated timing signals.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6651 Product PageOfficial Product Page · ni.com

Open →

Synchronizing NI PXI-44xx DSA Devices across Multiple PXI ChassisArchived NI Support Article · knowledge.ni.com

Open →

Timing Card Synchronous Triggers Arrive at Different Terminals One Clock Cycle ApartNI Troubleshooting Article · knowledge.ni.com

Open →

NI Synchronous Trigger Routing TroubleshootingTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6651 generate its own timing signals?

No. NI identifies the PXI-6651 as a routing module for externally generated signals, unlike the PXI-6652 and PXI-6653, which can generate clock and trigger signals.

Which software configures its timing routes?

NI-Sync configures the timing routes. For the multi-chassis DSA implementation described by NI, NI-Sync is used alongside NI-DAQmx.
