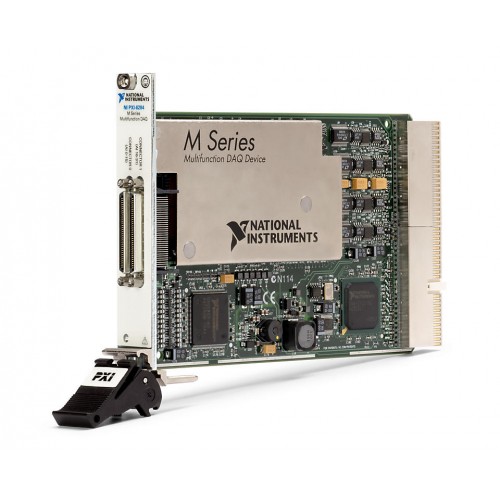

National Instruments PXI-6284 Multifunction data acquisition module
1 image: Click to enlarge
National Instruments · PXI

PXI-6284

The National Instruments PXI-6284 is an M Series PXI data acquisition module with 32 analog inputs and 18-bit resolution. Maximum acquisition rates are 625 kS/s for one channel and 500 kS/s aggregate for multiple channels.

ManufacturerNational Instruments
ModelPXI-6284
Part Number779122-01
Product TypeMultifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6284

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs32 single-ended or 16 differential
Resolution18-bit
Maximum sampling625 kS/s single channel; 500 kS/s multichannel aggregate
Digital I/O48 lines
Signal connectorsTwo 68-pin VHDCI connectors
