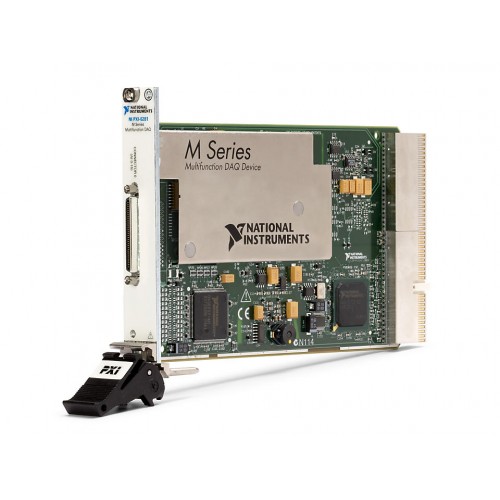

1 image: Click to enlarge

National Instruments · PXI

PXI-6281

Name: PXI-6281
Brand: National Instruments

The National Instruments PXI-6281 is an M Series multifunction data acquisition module with 16 analog inputs at 18-bit resolution, two analog outputs, and 24 digital I/O lines. It also provides two 32-bit counters/timers and analog and digital triggering.

ManufacturerNational Instruments

ModelPXI-6281

Product TypeMultifunction I/O module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6281

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog input16 channels, 18-bit resolution

Maximum input sample rate625 kS/s

Analog output2 channels

Digital I/O24 lines

Counters/timersTwo 32-bit counters/timers

Signal connector68-pin VHDCI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6281 combines analog acquisition, analog output, correlated digital I/O, and counter/timer functions in a PXI module. NI identifies it for laboratory automation, research, design verification, and manufacturing test.

The module uses NI-DAQmx for configuration and measurements. Its 68-pin VHDCI signal connection is covered by NI's 62xx cable and accessory guide, which provides the wiring-accessory selection reference for system integration.

18-bit analog input with 16 input channels.
Two analog output channels for multifunction measurement and control tasks.
24 digital I/O lines with correlated digital I/O capability.
Two 32-bit counters/timers.
Analog and digital triggering.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	16 channels
Analog input resolution	18 bits
Maximum analog input sample rate	625 kS/s
Analog output channels	2 channels
Digital I/O lines	24 lines
Counters/timers	2
Counter/timer resolution	32 bits
Signal connector	68-pin VHDCI

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6281

M Series multifunction data acquisition module

Driver

NI-DAQmx

Check the module hardware revision, chassis slot requirements, and NI-DAQmx operating-system support before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-6281 Product SupportManufacturer Product Support Page · ni.com

Open →

M Series User ManualUser Manual · docs-be.ni.com

Open →

62xx Models: DAQ Multifunction I/O Cable and Accessory CompatibilityCable And Accessory Compatibility Guide · ni.com

Open →

PXI-6281 Product CertificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6281 provide analog output?

Yes. The PXI-6281 provides two analog output channels in addition to its analog inputs and digital I/O.

Which signal connector does the PXI-6281 use?

NI lists the PXI-6281 in its 68-pin VHDCI multifunction I/O group. Select cables and terminal blocks using the NI 62xx compatibility guide.

Which driver is associated with the PXI-6281?

NI identifies NI-DAQmx as the driver for configuration and measurements. Check support for the intended driver version and operating system before installation.
