PXI-6233

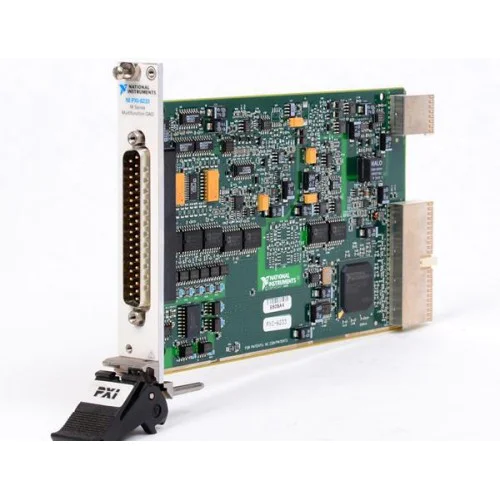

1 image: Click to enlarge
National Instruments · PXI

PXI-6233

The NI PXI-6233 is a bank-isolated M Series PXI module for voltage acquisition and control. It combines analog I/O, 24 V-compatible digital inputs and sinking outputs, and two 32-bit counters.

ManufacturerNational Instruments
ModelPXI-6233
Part Number779620-01
Product TypeBank-isolated multifunction data acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6233

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential; 16-bit
Maximum input sample rate250 kS/s
Analog outputs2 channels
Digital I/O6 inputs and 4 sinking outputs
Counters2 × 32-bit counter/timers
Slot format3U PXI-1; hybrid-slot-compatible
