PXI-6229

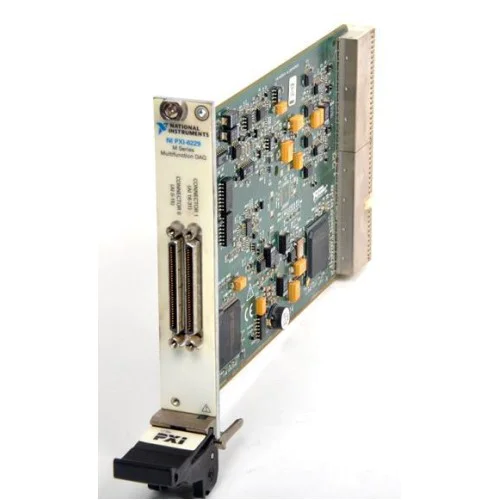

The National Instruments PXI-6229 is an M Series multifunction DAQ module combining 32 analog inputs, four analog outputs, 48 digital I/O lines and two 32-bit counters/timers.

ManufacturerNational Instruments

ModelPXI-6229

Part Number191332B-11

Product TypeMultifunction data acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6229

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs32 single-ended or 16 differential

Input resolution16-bit

Maximum input sampling250 kS/s aggregate

Analog outputs4 channels, 16-bit

Digital I/O48 lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-6229 brings analog acquisition, analog output, correlated digital I/O and digital triggering into a PXI measurement system. NI identifies laboratory automation, research, design verification and manufacturing test as relevant applications.

Chassis selection depends on the board variant. NI lists assembly 191332B-11 as capable of SCXI control in PXI/SCXI combination chassis, but not compatible with PXI Express hybrid slots. Verify the actual assembly marking before selecting a chassis.

Analog input and output combined with correlated digital I/O.
Digital triggering for measurement and generation tasks.
Two counter/timers for timing and counting functions.
NI-DAQmx driver support for configuration and measurements.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	32 single-ended or 16 differential
Analog input resolution	16 bit
Maximum analog input sample rate	250 single-channel or multichannel aggregate kS/s
Analog input ranges	±0.2, ±1, ±5, ±10 V
Analog output channels	4
Analog output resolution	16 bit
Analog output range	±10 V
Maximum analog output update rate	833 for one channel; 625 per channel with four channels kS/s
Digital I/O lines	48
Counters/timers	2, each 32-bit
Counter internal base clocks	80, 20, 0.1 MHz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6229

M Series multifunction DAQ module

Driver

NI-DAQmx

Check the actual assembly number and backplane connector; do not assume all PXI-6229 variants support PXI Express hybrid slots.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI/PXI/USB-6229 SpecificationsSpecifications And Pinout · ni.com

Open →

PXI-6229 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com

Open →

PCI/PXI-622x Letter of VolatilityMemory And Sanitization Documentation · ni.com

Open →

Controlling a PXI/SCXI Combination Chassis With a PXI Multifunction CardTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does assembly 191332B-11 support PXI Express hybrid slots?

No. NI lists 191332B-11 for SCXI control in PXI/SCXI combination chassis, not PXI Express hybrid-slot use. The 191332B-01 variant has the opposite capabilities.

Which driver supports the PXI-6229?

NI identifies NI-DAQmx as the driver for configuration and measurements. Confirm support for your selected driver release and operating system separately.
