PXI-5404

National Instruments PCI / PXI-5404 100 MHz Frequency Generator
Features

• DC up to 100 MHz Clock
• 12-Bit Vertical Resolution
• 9 kHz to 105 MHz Sine Wave
• 1 Channel Updated at 300 MS/s

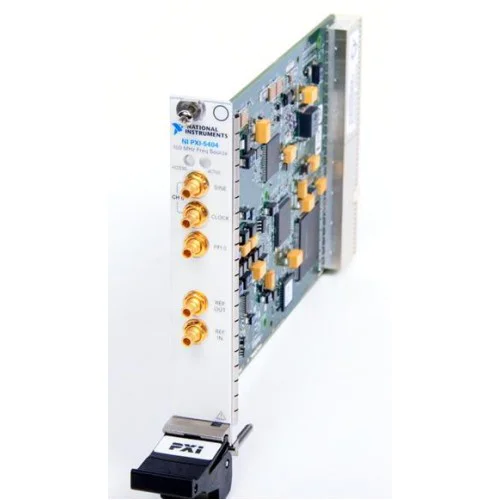

The National Instruments PXI-5404 is a 100 MHz frequency generator packaged in 1-slot PXI module. It generates sine and clock outputs simultaneously at up to 100 MHz with 1.07 μHz resolution. By using direct digital synthesis (DDS) and precise phase-lock loop circuitry, the PXI-5404 generates stable, accurate sine and clock outputs of which you can programmatically adjust the amplitude, frequency, and phase of the sine and clock outputs as well as the duty cycle of the clock output.

The PXI-5404 is a versatile, cost-effective, sine wave generator with output levels ranging from 1 to 2 Vpp into a 50Ω load with12-bit resolution, excellent frequency resolution, and pass band flatness. Stimulus-response instruments such as network analyzers and ATE test systems will benefit from using the PXI-5404 as the sine stimulus because of its passband flatness, and its frequency accuracy and resolution.

The PXI-5404 can also serve as a programmable clock generator for ATE systems because of its 1.07 μHz frequency resolution, duty-cycle adjustability from 25 to 75 percent, and programmable voltage levels of 5, 3.3, or 1.8 V into high-impedance loads.
Part Numbers: 778577-01, 187340D-01
