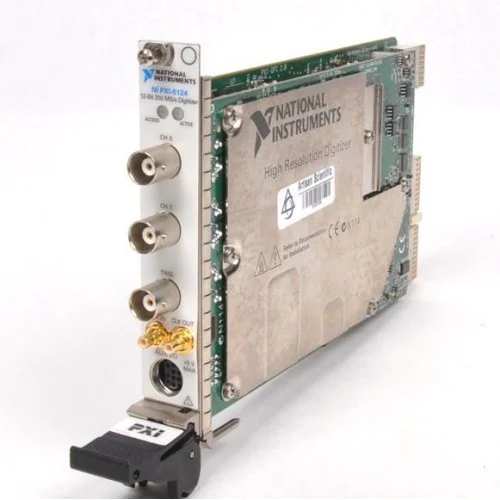

PXI-5124

The NI PXI-5124 is a two-channel, 12-bit PXI oscilloscope with 150 MHz bandwidth and sampling up to 200 MS/s. It supports time-domain and frequency-domain measurements.

ManufacturerNational Instruments

ModelPXI-5124

Part Number778757-01 · 778757-02

Product TypeHigh-resolution oscilloscope / digitizer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-5124

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog bandwidth150 MHz

Maximum real-time sampling200 MS/s

Resolution12 bits

Analog inputs2 channels

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-5124 provides configurable coupling, impedance, voltage range and filtering, together with triggering, onboard acquisition memory and PXI synchronization.

NI documents installation in PXI peripheral slots or PXI Express hybrid peripheral slots. Configuration and measurement workflows use NI-SCOPE and NI Measurement & Automation Explorer (MAX).

Selectable 50 Ω or 1 MΩ analog input impedance.
Separate front-panel connections for analog triggering and clock input/output.

Verified specifications

Technical data

Verified product specifications.

Analog bandwidth	150 MHz
Maximum real-time sample rate	200 MS/s
ADC resolution	12 bits
Voltage input channels	2 channels
Input impedance	50 Ω or 1 MΩ
Model-family memory variants	8, 32, 256 or 512 MB per channel; installed variant not identified
Analog input connectors	BNC female, CH 0 and CH 1
Clock connectors	SMB jack, CLK IN and CLK OUT

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-5124

Oscilloscope module

Driver

NI-SCOPE

Confirm the installed memory variant and check NI-SCOPE version requirements for the intended operating system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-5124 Product PageOfficial Product Page · ni.com

Open →

NI PXI/PCI-5124 Getting Started GuideGetting Started Guide · download.ni.com

Open →

Installation, connectors, MAX configuration and NI-SCOPE measurement proceduresTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which memory capacity does this catalog record identify?

The record does not identify the installed capacity. NI lists 8, 32, 256 and 512 MB-per-channel variants; confirm the module part number before selecting a configuration.

Can the PXI-5124 use a PXI Express chassis?

NI permits installation in a PXI Express hybrid peripheral slot, as well as a PXI peripheral slot. Do not assume that every PXI Express slot accepts this module.
