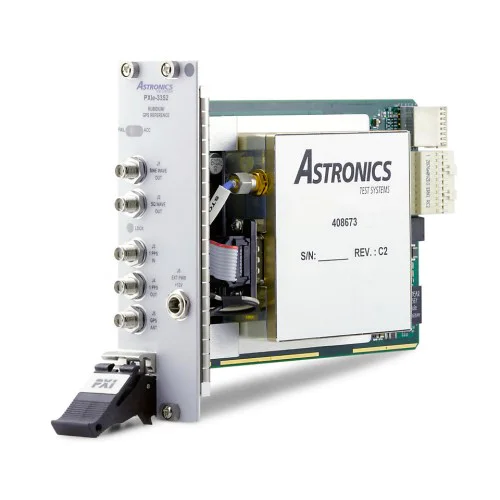

Astronics Test Systems PXIe-3352 Rubidium/GPS frequency standard
1 image: Click to enlarge
Astronics Test Systems · PXI Express

Astronics PXIe-3352

The Astronics PXIe-3352 combines a rubidium oscillator and GPS receiver in a dual-width PXI Express frequency standard. It supplies precision timing references for measurement equipment.

ManufacturerAstronics Test Systems
ModelPXIe-3352
Part Number785034-01 · 408673
Product TypeRubidium/GPS frequency standard
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-3352

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Reference output10 MHz
OscillatorRubidium with GPS disciplining
Module widthTwo slots
Clock accuracy50 ppt
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-3352 generates high-stability clock signals for PXI and third-party instrumentation. Its built-in GPS receiver disciplines the rubidium oscillator when connected to an external antenna.

Astronics identifies telecommunications timing, calibration and metrology, and RF subsystems as applications. The module supports free-running operation as well as GPS-assisted long-term stability.

  • Sine wave, square wave and 1 PPS timing outputs.
  • External DC input can maintain oscillator power while the chassis is off.
  • GPS location information is retained during power-off to assist subsequent startup.
  • Interactive control soft front panel and instrument-driver support.
Verified specifications

Technical data

Verified product specifications.

Output frequency10 MHz
Sine output amplitude10 ± 2 into 50 Ω dBm
CMOS output amplitude2.5 into 10 kΩ V
Sine output phase noise at 10 Hz offset-102 dBc/Hz
Initial accuracy at 25 °C5 × 10^-11
Frequency drift5 × 10^-11 /month
GPS tracking channels22 parallel
GPS operating frequency1575.42, L1 C/A code MHz
GPS timing accuracy, 1 PPS±11 ns
External rubidium power input12 V at 1.5 A
Operating temperature0 to 55 °C
Backplane clock overrideNo
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

Astronics Test Systems

Manufacturer

PXI Express

Modular instrumentation interface

PXIe-3352

Rubidium/GPS timing reference

Slot support

PXI hybrid or PXI Express slots; dual-width module.

Allow two-slot clearance and verify chassis power capacity. GPS disciplining requires an external antenna with a view of the sky.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXIe-3352 Datasheet, v3.1Datasheet · astronics.com
Open →
Astronics PXIe-3352 Product InformationProduct Page · ni.com
Open →
Astronics PXIe-3352 Driver DownloadTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXIe-3352 require GPS reception to operate?

No. The rubidium oscillator can operate freely or lock to the built-in GPS receiver.

Is the GPS antenna built in?

No. GPS disciplining requires an external antenna with a view of the sky; the manufacturer's datasheet states that the antenna is not included.

Can it override the PXI 10 MHz backplane clock without external cabling?

No. NI lists backplane clock override as unsupported.
