National Instruments · PXI

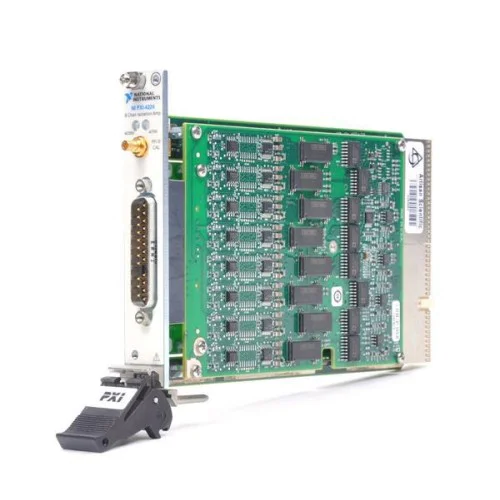

PXI-4224

The National Instruments PXI-4224 is an eight-channel, 16-bit isolated PXI analog input module with built-in signal conditioning. It supports a maximum sample rate of 200 kS/s and programmable gain settings for each channel.

ManufacturerNational Instruments

ModelPXI-4224

Part Number779182-01

Product TypeIsolated analog input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4224

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 differential channels

Resolution16-bit

Maximum sample rate200 kS/s

Input ranges±10 V and ±1 V

Channel-to-channel isolation60 VDC (42 Vrms), CAT I

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-4224 combines isolated analog acquisition and signal conditioning in a PXI module. Channel-to-channel isolation supports measurements where signals have differing common-mode potentials, within the specified isolation limits.

NI identifies isolated thermocouple measurements, multichannel data logging, and fuel cell and battery testing as applications. NI-DAQmx provides hardware configuration and measurement automation.

Built-in signal conditioning for analog input measurements.
Programmable gain settings on each channel.
Channel-to-channel isolation rated at 60 VDC (42 Vrms), CAT I.
TB-2725 terminal-block connectivity for eight signal pairs and external triggering.

Verified specifications

Technical data

Verified product specifications.

Differential analog input channels	8 channels
Analog input resolution	16 bits
Maximum sample rate	200 kS/s
Analog input ranges	±10; ±1 V
Channel-to-channel isolation	60 VDC (42 Vrms), CAT I
Gain configuration	Programmable per channel

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-4224

Isolated analog input module

Signal connection

The TB-2725 provides screw-terminal connections and an SMB external-trigger connector.

Check module and terminal-block limits before wiring; the isolation rating is not the analog input measurement range.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-4224 Product and Support OverviewProduct Support Page · ni.com

Open →

TB-2725 Terminal Block Installation GuideInstallation Guide · docs-be.ni.com

Open →

PXI-4224 Product CertificationsCertification Page · ni.com

Open →

TB-2725 Wiring and Installation InstructionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXI-4224 rated for 333 kS/s?

No. NI specifies a maximum sample rate of 200 kS/s for the PXI-4224.

Which terminal block is documented for the PXI-4224?

NI documents the TB-2725, with 16 screw terminals for eight input signal pairs and an SMB connector for external triggering. Accessory inclusion is not established by this catalog record.

Does the isolation rating mean it measures 60 V directly?

No. NI lists ±10 V and ±1 V input ranges separately from the 60 VDC channel-to-channel isolation rating.
