National Instruments · PXI

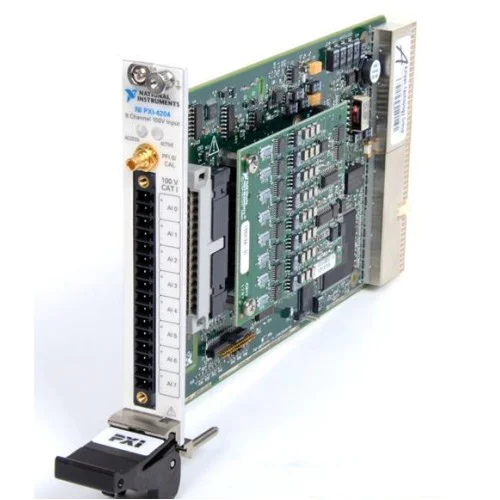

PXI-4204

The National Instruments PXI-4204 is an eight-channel PXI voltage acquisition module with integrated signal conditioning. It provides 16-bit resolution and programmable input ranges up to ±100 V.

ManufacturerNational Instruments

ModelPXI-4204

Part Number777845-4204

Product Type8-channel voltage input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4204

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 channels

Resolution16 bits

Input ranges±0.5 V to ±100 V

Sampling rate200 kS/s

Product familySC Series DAQ for PXI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-4204 combines voltage acquisition and signal conditioning in a PXI module. Its programmable per-channel gain and filtering support measurements across a range of signal amplitudes.

NI identifies the PXI-4204 as part of the SC Series DAQ family. Historical NI-DAQmx documentation lists the module among supported PXI devices, providing a useful reference when maintaining an existing acquisition system.

Eight analog input channels for voltage measurements up to ±100 V.
Integrated signal conditioning with programmable gain settings on each channel.
Selectable two-pole Butterworth filtering at 6 Hz or 10 kHz.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	8 channels
Resolution	16 bits
Input range span	±0.5 to ±100 V
Published sampling rate	200 kS/s
Input filter	Two-pole Butterworth; 6 Hz or 10 kHz
Bus	PXI

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Hardware platform

SC Series DAQ

Product family

PXI-4204

Eight-channel voltage acquisition module

Verify the intended driver version and operating system before integrating this legacy module.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI Instrumentation Newsletter: PXI-4204 Introduction and SpecificationsManufacturer Technical Newsletter · search.ni.com

Open →

NI-DAQmx 17.5 ReadmeDriver Support Documentation · download.ni.com

Open →

NI Legacy Product Family Obsolescence PlanningTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of signals does the PXI-4204 measure?

It measures analog voltage signals using eight input channels, with programmable ranges extending to ±100 V.

Is the PXI-4204 listed as supported by NI-DAQmx?

Yes. The NI-DAQmx 17.5 readme explicitly lists NI 4204 under supported SC Series DAQ devices for PXI. This confirms support for that release, not every later driver or operating system.
