National Instruments · PXI

PXI-1020

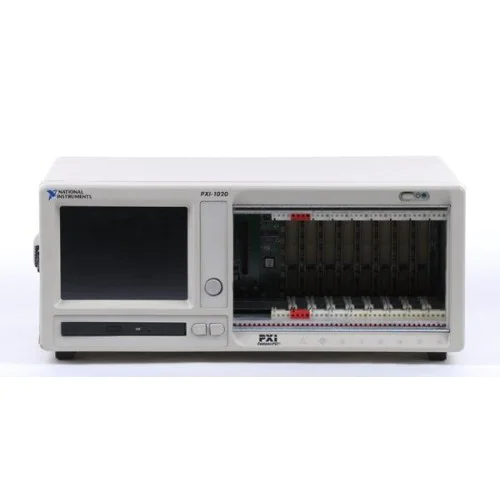

The National Instruments PXI-1020 is a PXI chassis with an integrated LCD display. Controller selection and configuration are important because support for the internal display and pointing-device connections varies by controller.

ManufacturerNational Instruments

ModelPXI-1020

Product TypePXI chassis with integrated LCD

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-1020

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI chassis

Integrated displayLCD; documented setup resolution of 640 × 480

Controller setupPXI-8150B and PXI-8170 series configuration documented by NI

Software limitationChassis support removed in PXI Platform Services 3.2.2

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-1020 combines a PXI chassis with an internal LCD. NI provides specific instructions for configuring PXI-8150B and PXI-8170 series controllers to use the chassis display and internal mouse connection.

Treat the chassis, embedded controller, and software installation as a matched legacy system. NI's controller compatibility matrix identifies restrictions on internal peripheral connections and physical fit, while its PXI Platform Services release history records removal of PXI-1020 support in version 3.2.2.

Integrated LCD display with a documented 640 × 480 controller configuration.
Internal mouse routing documented for PXI-8150B and PXI-8170 series controllers.
NI provides model-specific controller setup instructions and a legacy chassis/controller compatibility matrix.

Verified specifications

Technical data

Verified product specifications.

Platform	PXI
LCD setup resolution	640 × 480 pixels

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Instrumentation platform

PXI-1020

Chassis with integrated LCD

Controller integration

Internal display and mouse connections require controller-specific configuration.

Check the exact controller model, internal peripheral routing, and legacy software version before integrating this chassis.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Using the PXI-8150B/8170 Series in a PXI-1020 ChassisController Configuration Guide · download.ni.com

Open →

PXI Embedded Controller and PXI Chassis CompatibilityLegacy Knowledge Base Article (Japanese) · digital.ni.com

Open →

PXI Platform Services 20.0 ReadmeSoftware Release History · ni.com

Open →

PXI-1020 Controller Routing and LCD SetupTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What resolution is documented for the integrated LCD?

NI's PXI-8170 setup instructions specify setting the LCD display resolution to 640 × 480.

Can any PXI embedded controller operate the internal display?

No. NI notes that the NI 8174, NI 8184, and NI 8185 lack the internal connections required for the chassis display and peripherals, even though they can operate and communicate with instruments in the chassis. The same matrix states that NI 8195 and NI 8196 controllers do not physically fit.

Is PXI-1020 support retained in later PXI Platform Services releases?

NI's release history lists PXI-1020 chassis support as removed in PXI Platform Services 3.2.2. Verify the complete legacy software environment rather than assuming a later release supports this chassis.
