National Instruments · PXI

PXI-1025

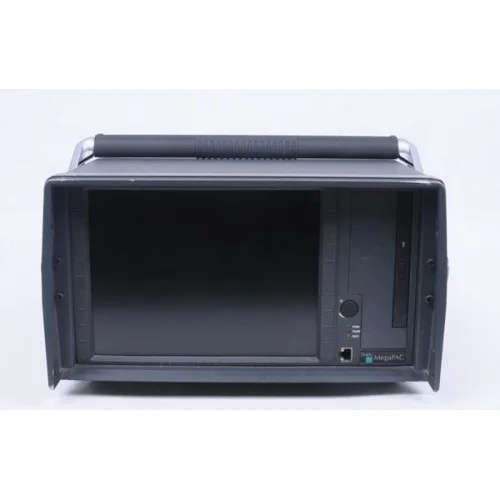

The PXI-1025 MegaPAC is a portable PXI chassis jointly developed by National Instruments and Dolch Computer Systems.

ManufacturerNational Instruments

ModelPXI-1025

Product TypePortable PXI chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-1025

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Display10.4-inch color TFT

Power350 W

CoolingFiltered forced air

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The portable design combines a display, removable keyboard, and carrying handle that doubles as a tilt stand.

Dual-chassis construction with eight-point IsoGuard shock isolation.
Temperature-controlled fans with quiet mode.
Custom mounting points.

Verified specifications

Technical data

Verified product specifications.

Display resolution	800 × 600 pixels
Maximum usable power	350 W
AC input voltage	90–265 VAC
Input frequency	50–60 Hz
Operating temperature	0–50 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Joint developer

PXI

Platform

PXI-1025 MegaPAC

Portable chassis

Compatibility

NI documents use of PXI-8150B series controllers in this chassis, with hardware routing and BIOS configuration required for the integrated user interface.

Confirm controller-specific display and keyboard routing before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-1025 MegaPAC DatasheetDatasheet · ni.com

Open →

Using the PXI-8150B Series Controller in a PXI-1025 ChassisController Configuration Guide · digital.ni.com

Open →

PXI-8150B Controller Setup InstructionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-8150B controller require special configuration?

Yes. NI's guide specifies an LCD-resolution jumper change, keyboard and mouse routing switches, and a BIOS update to route video to the chassis LCD. Follow the controller-specific instructions rather than assuming automatic operation.

Can it accept CompactPCI modules?

The datasheet specifies acceptance of PICMG 2.0-compliant CompactPCI modules.
