National Instruments · PXI

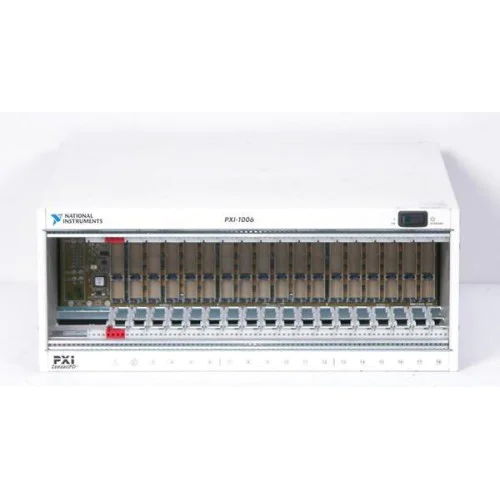

PXI-1006

The National Instruments PXI-1006 is an 18-slot PXI/CompactPCI chassis supporting up to 17 peripheral instruments or devices. It combines integrated timing and triggering with a modular power supply shuttle rated for 600 W maximum usable output.

ManufacturerNational Instruments

ModelPXI-1006

Product Type18-slot PXI/CompactPCI chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-1006

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Backplane18-slot PXI/CompactPCI

Peripheral capacityUp to 17 instruments or devices

Maximum usable power600 W

AC input90–264 VAC, 47–63 Hz

Timing referenceBuilt-in 10 MHz clock

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-1006 provides a rack-mountable platform for larger modular test systems. Its 18-slot backplane accommodates up to 17 PXI/CompactPCI peripheral devices for synchronized instrumentation and high-channel-count switching.

Two PXI-to-PXI bridges extend the PCI bus and PXI timing and triggering across the chassis. A removable shuttle integrates the power supply, cooling fans, and fan-control circuitry for service access.

Supports PXI/CompactPCI peripheral instruments and devices.
Built-in 10 MHz reference supports synchronization across 17 peripherals.
Star trigger bus supports synchronization across 14 instruments.
Universal AC input automatically ranges voltage and frequency.
Power supply shuttle includes selectable fan speed and rear-panel remote power monitoring and inhibit.

Verified specifications

Technical data

Verified product specifications.

Total slots	18 slots
Maximum peripheral capacity	17 devices
Power supply maximum usable output	600 W
Power supply AC input voltage	90–264 VAC
Power supply AC input frequency	47–63 Hz
Power supply maximum steady-state operating current	10 A
Built-in reference clock	10 MHz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI/CompactPCI

Modular instrumentation platform

PXI-1006

18-slot chassis

Peripheral integration

Accommodates up to 17 PXI/CompactPCI instruments or devices.

Check legacy controller and software requirements before integration; PXI Platform Services 3.2.2 removed PXI-1006 support.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-1006 Power Supply Shuttle User GuideService Guide And Power Supply Specifications · download.ni.com

Open →

NI First Quarter 2001 Newsletter: PXI-1006 Manufacturing Test OverviewManufacturer Product Overview · ni.com

Open →

PXI Platform Services 18.1 ReadmeSoftware Support History · ni.com

Open →

Power supply shuttle removal, installation, and electrical specificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does 18 slots mean 18 peripheral instruments?

No. NI specifies an 18-slot chassis with capacity for up to 17 PXI/CompactPCI peripheral instruments or devices.

What AC supply does the PXI-1006 power supply accept?

The power supply shuttle accepts 90–264 VAC at 47–63 Hz and automatically ranges input voltage and frequency.

Is the power supply removable?

Yes. The chassis uses a removable power supply shuttle containing the power supply, cooling fans, and fan-control circuitry. NI restricts the documented service procedure to qualified personnel and requires disconnecting AC power before servicing.

What software support limitation should be checked?

NI's release history states that PXI Platform Services 3.2.2 removed support for the PXI-1006. Verify the software and controller configuration for the intended legacy system.
