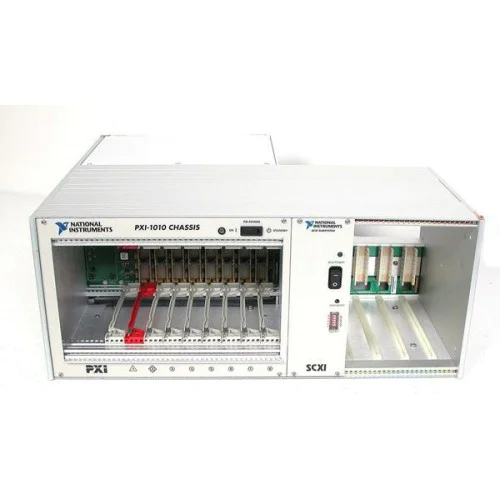

The National Instruments PXI-1010 combines an 8-slot PXI backplane and a 4-slot SCXI backplane in one chassis. PXI slot 8 provides the interface to the SCXI backplane.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-1010 is a combination chassis with separate PXI and SCXI backplanes integrated into one enclosure. Its 8-slot PXI section and 4-slot SCXI section distinguish it from a PXI-only chassis.
NI's archived configuration guide identifies PXI slot 8 as the SCXI backplane interface. For legacy MAX configurations, the controller and chassis must be identified correctly so that MAX saves the appropriate PXISYS.INI file; the SCXI portion is then configured separately.
Verified product specifications.
| PXI backplane slot count | 8 slots |
|---|---|
| SCXI backplane slot count | 4 slots |
| PXI slot used for SCXI backplane interface | 8 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Integrated backplane platforms
8-slot PXI and 4-slot SCXI combination chassis
PXI slot 8 interfaces to the SCXI backplane.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
PXI slot 8 is the SCXI backplane interface. NI's archived MAX guide instructs users configuring the SCXI portion to install a PXI DAQ device in the rightmost PXI slot.
Yes. NI's archived procedure directs users to create the combination chassis under Devices and Interfaces using the applicable NI-DAQmx SCXI Chassis or Traditional NI-DAQ Device entry, then complete SCXI configuration.
