National Instruments · PCI

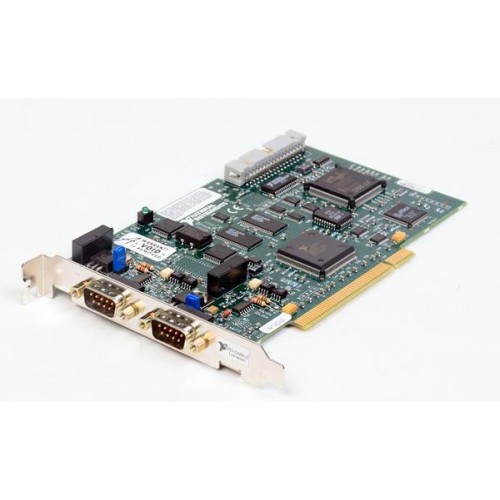

PCI-CAN/LS2

The National Instruments PCI-CAN/LS2 is a two-port PCI interface for low-speed, fault-tolerant CAN networks. NI identifies the Series 2 version as part number 778007-02 and lists the model among hardware supported by NI-CAN 18.0.

ManufacturerNational Instruments

ModelPCI-CAN/LS2

Part Number778007-02

Product TypeTwo-port low-speed/fault-tolerant CAN interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-CAN/LS2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host platformPCI

CAN ports2

Physical layerLow-speed/fault-tolerant CAN

Series 2 part number778007-02

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-CAN/LS2 belongs to NI's PCI-CAN interface family and provides two low-speed CAN ports. NI's historical catalog identifies part number 778007-02 as the Series 2 configuration.

NI-CAN documentation distinguishes the PCI-CAN/LS2 low-speed/fault-tolerant interface from the high-speed PCI-CAN and PCI-CAN/2 models and the software-selectable PCI-CAN/XS variants. Physical-layer selection is therefore an important distinction when comparing these cards.

Two CAN ports on a PCI interface card.
Low-speed/fault-tolerant CAN physical layer.
Explicitly listed in the NI-CAN 18.0 supported-hardware documentation.

Verified specifications

Technical data

Verified product specifications.

Host interface	PCI
Port count	2 ports
CAN physical layer	Low-speed/fault-tolerant
Cataloged hardware generation	Series 2 for part number 778007-02

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI-CAN

PCI CAN interface family

PCI-CAN/LS2

Two-port low-speed/fault-tolerant CAN interface

Driver ecosystem

NI-CAN; model support is documented in NI-CAN 18.0.

Confirm the card's hardware revision and the selected NI-CAN release's operating-system requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-CAN 18.0 ReadmeDriver Support Documentation · download.ni.com

Open →

NI-CAN 2.3.3 ReadmeHistorical Driver Support Documentation · download.ni.com

Open →

NI-CAN 18.0 hardware and software requirementsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many CAN ports does the PCI-CAN/LS2 provide?

NI's historical catalog lists the PCI-CAN/LS2 Series 2 configuration, part number 778007-02, with two low-speed CAN ports.

Is the PCI-CAN/LS2 a high-speed CAN interface?

No. NI classifies the PCI-CAN/LS2 as low-speed/fault-tolerant CAN. The PCI-CAN and PCI-CAN/2 are separately listed as high-speed models.

Which NI driver documentation lists this model?

Both NI-CAN 18.0 and the historical NI-CAN 2.3.3 readmes explicitly list PCI-CAN/LS2 support. Check the requirements of the specific driver release against the intended host system.
