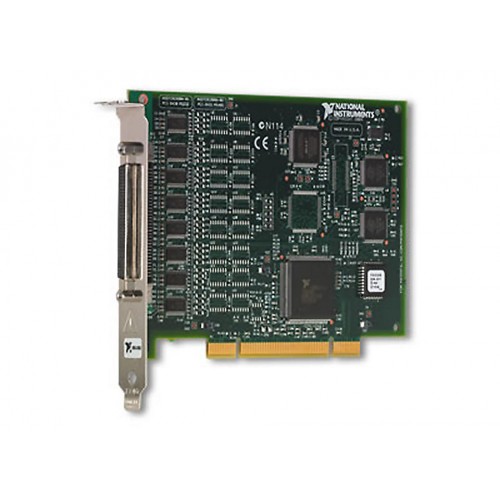

The National Instruments PCI-8430/8 is an eight-port, nonisolated RS-232 serial interface card for PCI systems. NI lists a maximum baud rate of 1000 kbaud.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-8430/8 provides eight RS-232 ports on a PCI card. It belongs to the PCI-8430 family, alongside two-, four- and sixteen-port models.
The board uses a 68-pin SCSI connector and requires a breakout cable to expose eight DB-9 connections. NI specifies universal PCI compatibility with 3.3 V or 5 V slots.
Verified product specifications.
| Bus interface | PCI |
|---|---|
| Serial protocol | RS-232 |
| Serial port count | 8 ports |
| Isolation | None |
| Maximum baud rate | 1000 kbaud |
| I/O connector | 68-pin SCSI |
| FIFO size | 128 bytes |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host expansion bus
Eight-port RS-232 interface
NI-Serial 21.3 lists PCI-8430/8 among supported PCI interfaces.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI lists the PCI-8430/8 as RS-232 hardware; the PCI-8431 models are listed separately for RS-485/RS-422.
No. The PCI-8430/8 is a nonisolated interface.
A breakout cable converts the board's 68-pin connector to eight DB-9 connections. Cable inclusion for this catalog item is not established.
