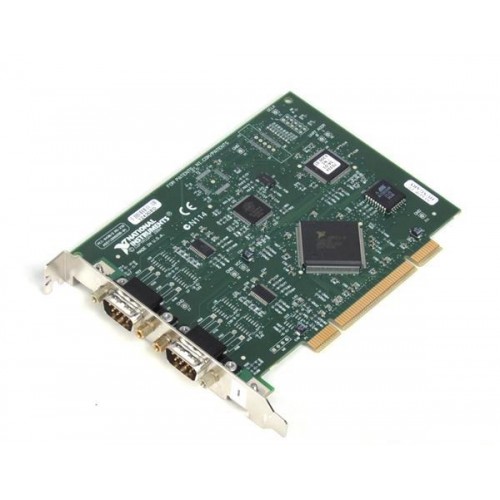

National Instruments PCI-8430/2 Two-port RS-232 serial interface
1 image: Click to enlarge
National Instruments · PCI

PCI-8430/2

The National Instruments PCI-8430/2 is a two-port, non-isolated RS-232 serial interface for PCI systems. It supports a maximum baud rate of 1000 kbaud and uses DB-9 male serial connectors.

ManufacturerNational Instruments
ModelPCI-8430/2
Product TypeTwo-port RS-232 serial interface
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-8430/2

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI
Serial ports2 × RS-232
Maximum baud rate1000 kbaud
Serial connectorDB-9 male
IsolationNon-isolated
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-8430/2 adds two RS-232 serial ports to a PCI-based host. NI lists this model separately from PCI Express and PXI serial interfaces; those platform names should not be treated as interchangeable.

Within the PCI-8430 family, the /2 model provides two ports. NI also documents four-, eight-, and sixteen-port versions, allowing comparison by port count without confusing RS-232 models with RS-485/RS-422 interfaces.

  • Two RS-232 serial ports on a PCI interface.
  • Maximum supported baud rate of 1000 kbaud.
  • DB-9 male serial connections.
  • 128-byte FIFO listed in NI's serial hardware specifications.
Verified specifications

Technical data

Verified product specifications.

Host busPCI
Serial standardRS-232
Serial port count2 ports
Maximum baud rate1000 kbaud
IsolationNo
Connector typeDB-9 male
FIFO size128 bytes
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host bus

PCI-8430/2

Two-port RS-232 serial interface

Driver reference

NI-Serial 21.3 lists PCI-8430/2 among its supported PCI interfaces.

Distinguish PCI-8430/2 from PCIe-8430/2. Confirm host-slot and operating-system support for the intended NI-Serial version.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI Serial Hardware Specifications and Features GuideHardware Specifications And Features Guide · docs-be.ni.com
Open →
NI-Serial 21.3 ReadmeDriver Readme And Supported Interfaces · ni.com
Open →
NI serial hardware specifications, connectors, and featuresTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
PCI-8430/4View product →
Related model
PCI-8430/8View product →
Related model
PCI-8430/16View product →

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PCI-8430/2 support RS-485 or RS-422?

No. NI identifies the PCI-8430/2 as an RS-232 interface. The PCI-8431 models are listed separately as RS-485/RS-422 interfaces.

Is the PCI-8430/2 electrically isolated?

No. NI lists this model as non-isolated.

What connectors does the PCI-8430/2 use?

NI specifies DB-9 male serial connectors for the PCI-8430/2.
