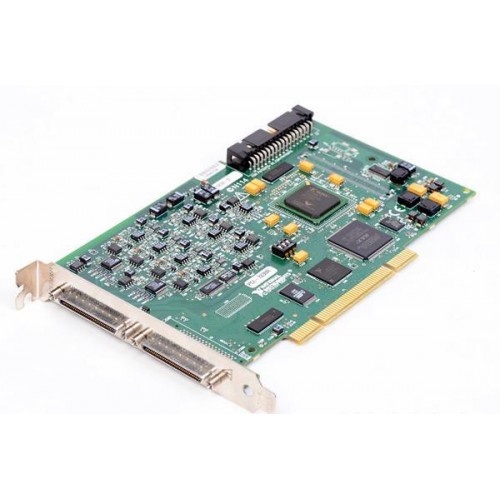

The National Instruments PCI-7830R is a PCI R Series multifunction reconfigurable I/O card with a Virtex-II FPGA and analog and digital I/O.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-7830R belongs to NI's FPGA-based R Series. Its reconfigurable architecture allows users to define measurement circuitry with the LabVIEW FPGA Module rather than relying solely on fixed-function I/O behavior.
Software selection requires care: NI explicitly removed PCI-7830R support from the July 2017 R Series Multifunction RIO Device Drivers release. Check the intended driver, LabVIEW and operating-system combination before integration.
Verified product specifications.
| Analog input channels | 4 channels |
|---|---|
| Analog input resolution | 16 bits |
| Maximum analog input sampling rate | 200 per channel kS/s |
| Analog input range | ±10 V |
| Analog output channels | 4 channels |
| Analog output resolution | 16 bits |
| Maximum analog output update rate | 1 MS/s |
| Analog output range | ±10 V |
| Digital I/O | 56 TTL-compatible lines |
| FPGA type | Virtex-II V1000 |
| I/O connectors | Two 68-pin female high-density VHDCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
FPGA-based I/O platform
Multifunction reconfigurable I/O card
LabVIEW FPGA Module; select versions using NI's device-specific software support information.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI identifies the PCI-7830R FPGA as a 1-million-gate Virtex-II.
No. NI lists the PCI-7830R among the devices no longer supported in that release. Use NI's software compatibility references to identify an appropriate older configuration.
Yes. NI's accessory guide lists support for one NI-9151 on the PCI-7830R digital connector, providing space for up to four C Series I/O modules.
