PCI-7334

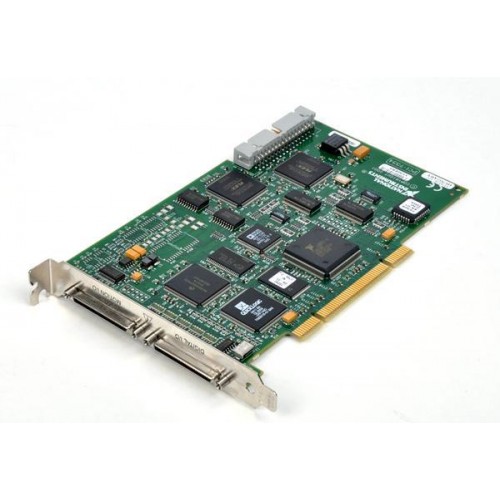

The National Instruments PCI-7334 is a four-axis PCI stepper motion controller for point-to-point positioning. It supports linear interpolation for coordinated multi-axis motion.

ManufacturerNational Instruments

ModelPCI-7334

Part Number778924-04 · 778417-01

Product Type4-axis stepper motion controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-7334

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Axes4

Controller typeStepper

Host interfacePCI

Coordinated motionLinear interpolation
