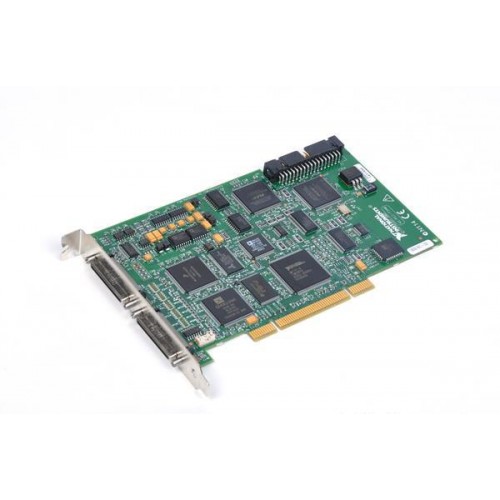

National Instruments PCI-7342 2-axis stepper/servo motion controller
1 image: Click to enlarge
National Instruments · PCI

PCI-7342

The National Instruments PCI-7342 is a two-axis PCI stepper/servo motion controller in the NI 7340 family. It combines onboard processing with coordinated motion and contouring capabilities.

ManufacturerNational Instruments
ModelPCI-7342
Part Number778665-02 · 778916-02
Product Type2-axis stepper/servo motion controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-7342

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Controlled axes2
Host interfacePCI
Axis configurationStepper or servo per axis
ExecutionOnboard real-time operating system
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-7342 supports host-centric programming and embedded motion execution. Its onboard multitasking environment allows motion programs and processes to execute independently of continuous host-PC intervention.

The NI 7340 hardware manual covers controller installation, motion and digital I/O connections, encoder feedback, and electrical specifications. Use the two-axis configuration when interpreting family-level documentation for the PCI-7342.

  • Dual-processor architecture for onboard motion processing.
  • Coordinated linear, circular, point-to-point, gearing, and vector-space control.
  • Blended trajectories and contouring for complex moves.
Verified specifications

Technical data

Verified product specifications.

Number of controlled axes2 axes
Bus interfacePCI
Motor control typesStepper, brushed servo, brushless servo
Servo command output range±10 V
Servo command output resolution16 bits
PID update interval range62.5 µs to 5 ms per sample
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI / NI 7340 Series

Host interface and controller family

PCI-7342

Two-axis stepper/servo controller

System integration

Match the controller's command signals, feedback wiring, and axis configuration to the external motor drive.

This is a motion controller, not a motor power drive; external drive hardware is required.
