National Instruments · PCI

PCI-6259

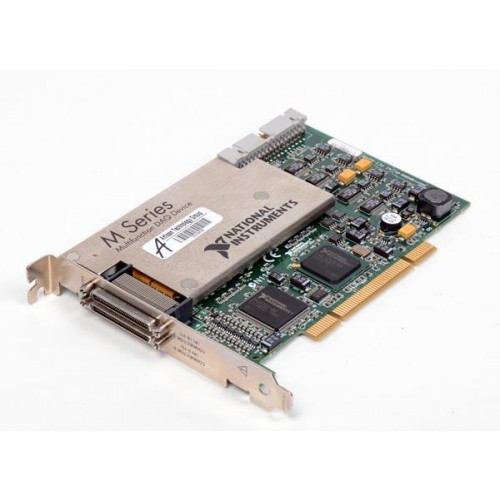

The National Instruments PCI-6259 is an M Series multifunction PCI data acquisition card with 32 analog inputs at 16-bit resolution, four analog outputs, and 48 digital I/O lines.

ManufacturerNational Instruments

ModelPCI-6259

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6259

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPCI, M Series

Analog inputs32 single-ended or 16 differential; 16-bit

Maximum input sampling1.25 MS/s single channel; 1.00 MS/s multichannel aggregate

Analog outputs4 channels

Digital I/O48 lines

I/O connectionsDual VHDCI connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6259 combines analog acquisition, analog output, and digital I/O on a PCI card in NI's M Series family. It is the PCI model, distinct from the PCIe, PXI, and USB versions of the 6259.

Analog inputs support 32 single-ended or 16 differential channels. The maximum sampling rate is 1.25 MS/s for a single channel or 1.00 MS/s aggregate across multiple channels; the multichannel figure is not a per-channel rate.

The PCI-6259 combines analog acquisition, analog output and digital I/O in an NI M Series PCI device. Its analog inputs can be configured as 32 single-ended channels or 16 differential channels.

The maximum analog input rate is 1.25 MS/s for one channel and 1 MS/s aggregate for multichannel acquisition. Signal connections use two 68-pin VHDCI connectors; consult NI's accessory guide for connector-specific restrictions.

16-bit analog input conversion with single-ended and differential channel configurations.
Seven analog input ranges from ±0.1 V to ±10 V.
Four analog output channels alongside 48 digital I/O lines.
Dual VHDCI I/O connections supported by NI's model-specific cable and accessory guide.
16-bit analog input conversion with single-ended and differential input configurations.
Up to 1.25 MS/s single-channel analog acquisition.
Dual 68-pin VHDCI signal connectors.

Verified specifications

Technical data

Verified product specifications.

Host interface	PCI
Analog input channels	32 single-ended or 16 differential
Analog input resolution	16 bits
Maximum single-channel sampling rate	1.25 MS/s
Maximum multichannel aggregate sampling rate	1.00 MS/s
Analog input ranges	±10, ±5, ±2, ±1, ±0.5, ±0.2, ±0.1 V
Analog output channels	4
Digital I/O lines	48
I/O connector arrangement	Dual VHDCI
Maximum single-channel input sample rate	1.25 MS/s
Maximum multichannel aggregate input sample rate	1 MS/s
Signal connectors	Two 68-pin VHDCI connectors

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series / PCI

DAQ family and host interface

PCI-6259

Multifunction data acquisition card

Driver evidence

NI-DAQmx 14.1 lists PCI 6259 support; this historical listing does not establish support for every driver or operating-system version.

Confirm PCI host support, the selected NI-DAQmx/OS combination, and connector-specific cable routing before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 625x Family SpecificationsDatasheet With Model-specific Specification Tables · ni.com

Open →

PCI-6259 Dimensional DrawingsDimensional Drawing Resource · ni.com

Open →

62xx Models: DAQ Multifunction I/O Cable and Accessory CompatibilityCable And Accessory Guide · ni.com

Open →

M Series User ManualUser Manual · docs-be.ni.com

Open →

NI-DAQmx 14.1 Readme — Historical Device SupportTechnical resource

Open →

NI 62xx cable and accessory compatibility guideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PCI-6259 a PCI Express card?

No. The PCI-6259 uses PCI. NI lists PCIe-6259 separately as a different interface version.

Does 1.25 MS/s apply to every analog input channel?

No. The maximum is 1.25 MS/s for single-channel acquisition. Multichannel acquisition has a maximum aggregate rate of 1.00 MS/s shared across the acquired channels.

How many analog input channels does the PCI-6259 provide?

It provides 32 single-ended or 16 differential analog inputs with 16-bit resolution.

What signal connectors does the PCI-6259 use?

NI identifies the PCI-6259 as a dual-connector device using 68-pin VHDCI connections. Review the official accessory guide for cable and terminal-block limitations.
