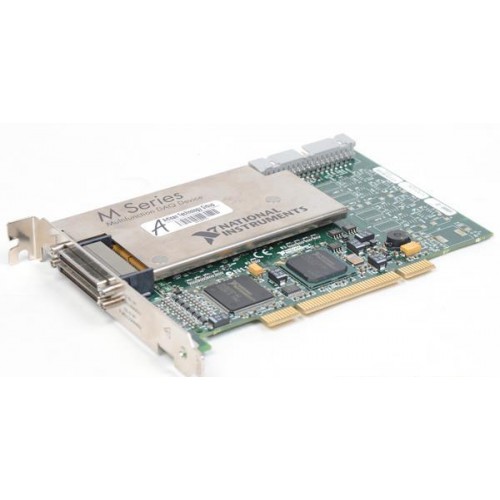

The National Instruments PCI-6254 is an M Series PCI data acquisition card with 32 single-ended or 16 differential analog inputs, 48 digital I/O lines and two counter/timers.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-6254 combines voltage acquisition, digital I/O and counter functions on a PCI board. Seven bipolar input ranges extend from ±0.1 V to ±10 V.
The M Series User Manual provides device-specific pin assignments and cabling guidance. Use the PCI/PXI-6254 section rather than the pinout for another M Series model.
Verified product specifications.
| Analog input channels | 32 single-ended or 16 differential |
|---|---|
| ADC resolution | 16 bit |
| Maximum single-channel sample rate | 1.25 MS/s |
| Maximum multichannel aggregate sample rate | 1.00 MS/s |
| Analog input ranges | ±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V |
| Digital I/O lines | 48 |
| I/O connectors | 2 × 68-pin VHDCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface and DAQ family
Data acquisition card
NI-DAQmx 8.6 explicitly lists PCI-6254 support. Confirm operating-system and application requirements for the driver version used.
