National Instruments PCI-6221 Multifunction data acquisition board

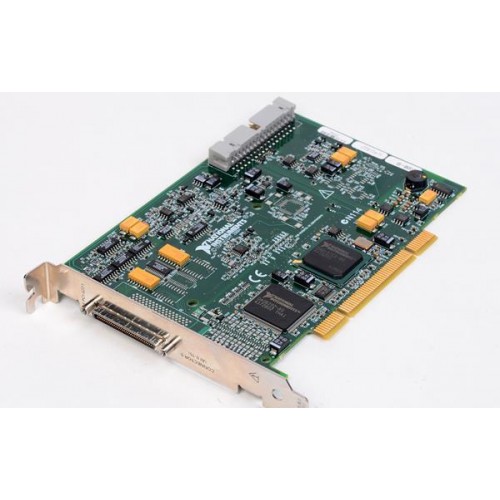

1 image: Click to enlarge
National Instruments · PCI

PCI-6221

The National Instruments PCI-6221 is an M Series multifunction PCI data acquisition board with analog input, analog output, digital I/O, and two 32-bit counters/timers. The catalog record does not identify whether this board is the 37-pin or 68-pin version.

ManufacturerNational Instruments
ModelPCI-6221
Product TypeMultifunction data acquisition board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6221

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input resolution16-bit
Maximum input sample rate250 kS/s aggregate
Analog outputs2 channels, 16-bit
Connector versions68-pin VHDCI or 37-pin D-SUB; record variant unresolved
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6221 combines voltage acquisition, analog signal generation, correlated digital I/O, and digital triggering on a PCI board. NI identifies laboratory automation, research, design verification, and manufacturing test as relevant uses.

Connector identification is important: NI documents separate 37-pin and 68-pin versions. The supplied legacy description mixes digital I/O details from these versions, so version-dependent specifications must not be treated as confirmed for this catalog item.

  • Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V, and ±10 V.
  • Two analog outputs with a ±10 V output range.
  • Two 32-bit counters/timers and digital triggering.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential channels
Analog input resolution16 bit
Maximum analog input sample rate250; single channel or multichannel aggregate kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels2 channels
Analog output resolution16 bit
Maximum analog output update rate833 with one channel; 740 per channel with two channels kS/s
Analog output range±10 V
Counters/timers2 counters, 32-bit resolution
