NI (National Instruments) PCI-6224 32 AI (16-Bit, 250 kS/s), 48 DIO PCI Multifunction I/O Device

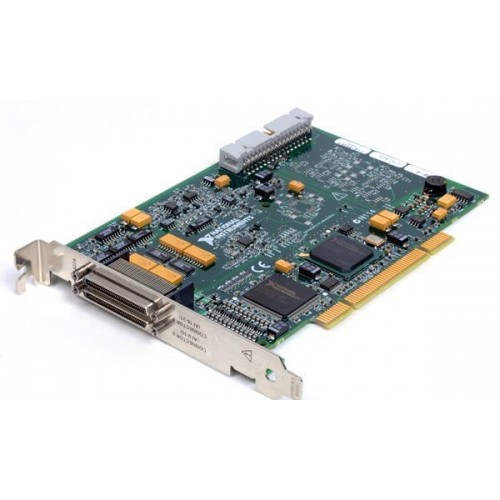

1 image: Click to enlarge
NI (National Instruments) · PCI

PCI-6224

The NI PCI-6224 is a PCI multifunction data acquisition device with 32 analog inputs, 16-bit resolution, and a maximum sample rate of 250 kS/s. It also provides 48 bidirectional digital channels and two counters/timers.

ManufacturerNI (National Instruments)
ModelPCI-6224
Part Number779067-01
Product Type32 AI (16-Bit, 250 kS/s), 48 DIO PCI Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6224

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels48
Max Single-Ended Analog Input Channels32
Number of Counters/Timers2
Maximum Sample Rate250 kS/s
Bus ConnectorPCI
Front Connection TypeVHDCI
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6224 combines analog input, correlated digital I/O, two 32-bit counters/timers, and digital triggering in a PCI data acquisition board. It supports up to 32 single-ended analog input channels and has no analog output channels.

The device uses a PCI host interface and VHDCI front connection. Selectable analog input ranges are ±0.2 V, ±1 V, ±5 V, and ±10 V. NI provides model-specific specifications and dimensional drawings, along with a PCI DAQ getting-started guide.

  • Up to 32 single-ended analog inputs with 16-bit resolution.
  • Maximum analog input sample rate of 250 kS/s.
  • 48 bidirectional digital channels with correlated digital I/O capability.
  • Two 32-bit counters/timers and digital triggering.
  • Analog input ranges of ±0.2 V, ±1 V, ±5 V, and ±10 V.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels48
Maximum Number of Single-Ended Analog Input Channels32
Number of Counters/Timers2
Maximum Sample Rate250 kS/s
EnclosedYes
Bus ConnectorPCI
Front Connection TypeVHDCI
Maximum Analog Update Rate500 kS/s
Bus ConnectionPCI
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
NI part numbers779067-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI

Bus Connector

PCI-6224

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
