National Instruments · PCI

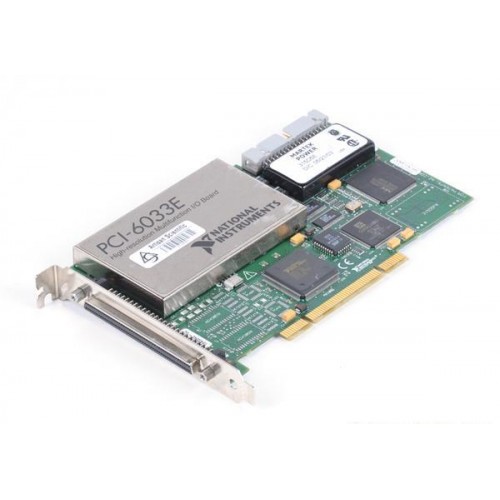

PCI-6033E

The National Instruments PCI-6033E is an E Series PCI data acquisition card with 64 analog input channels, 16-bit resolution and a maximum single-channel sampling rate of 100 kS/s. It also provides eight digital I/O lines and two counters/timers.

ManufacturerNational Instruments

ModelPCI-6033E

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6033E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs64 single-ended or 32 differential

ADC resolution16 bits

Maximum single-channel sampling rate100 kS/s

Digital I/O8 lines

Counters/timers2

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCI-6033E combines high-channel-count analog acquisition with digital I/O and counter/timer functions on a PCI E Series card. Its analog inputs are software-selectable as 64 single-ended channels or 32 differential channels.

The analog input section uses a 16-bit successive-approximation ADC and software-selectable input ranges. The 100 kS/s specification is a single-channel maximum; multichannel acquisition rates must account for the settling-time requirements in the manufacturer manual.

Software-selectable single-ended or differential analog input configuration.
16-bit successive-approximation analog-to-digital conversion.
Software-selectable bipolar and unipolar input ranges.
Eight digital I/O lines and two counters/timers alongside analog acquisition.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	64 single-ended or 32 differential, software-selectable
ADC resolution	16 bits
ADC type	Successive approximation
Maximum single-channel sampling rate	100 kS/s
Digital I/O lines	8 lines
Counters/timers	2

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI E Series

Hardware family and host interface

PCI-6033E

Multifunction data acquisition card

Historical driver support

Listed in the NI-DAQ 8.6 documentation under devices supported in NI-DAQmx and Traditional NI-DAQ (Legacy).

Confirm the driver release and operating-system support for the intended host; historical support does not establish support in current software.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI E Series User ManualUser Manual · forums.ni.com

Open →

NI-DAQ 8.6 ReadmeDriver Support Documentation · download.ni.com

Open →

PCI E Series manual: PCI-6033E analog input specificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCI-6033E provide?

It provides 64 single-ended or 32 differential analog inputs, selected through software.

Which digital and counter functions are included?

NI lists eight digital I/O lines and two counters/timers for the PCI-6033E.

Is the PCI-6033E listed for NI-DAQmx support?

Yes. The NI-DAQ 8.6 readme lists it under devices supported in both NI-DAQmx and Traditional NI-DAQ (Legacy). This is historical release-specific evidence, not confirmation of support in current driver releases.
