National Instruments · PCI

PCI-6024E

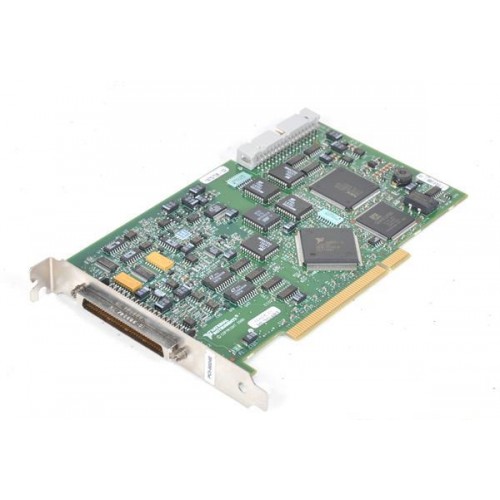

The National Instruments PCI-6024E is a multifunction PCI DAQ board with 16 analog inputs, 12-bit input resolution, and a maximum sampling rate of 200 kS/s. It also provides two analog outputs, eight digital I/O lines, and two counter/timers.

ManufacturerNational Instruments

ModelPCI-6024E

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6024E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential

Input conversion12-bit; up to 200 kS/s

Analog outputs2 channels, 12-bit

Digital I/O8 lines

Counters2 × 24-bit
