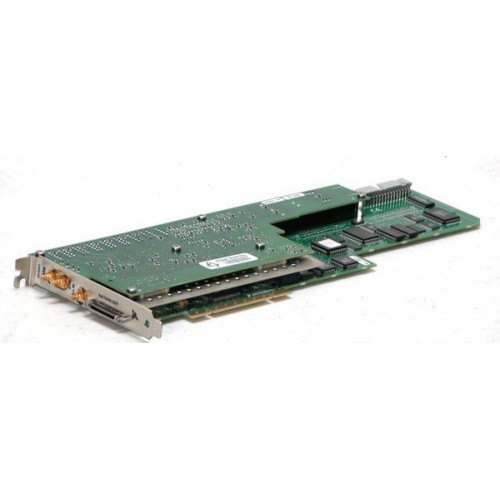

The National Instruments PCI-5401 is a single-channel PCI function generator with 12-bit resolution and sine-wave output up to 16 MHz.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-5401 belongs to NI's PCI/PXI-5401 function-generator family. This catalog record identifies the PCI version, not the PXI module.
Verified product specifications.
| Maximum update rate | 40 MHz |
|---|---|
| Square, ramp, and triangle frequency | 1 maximum MHz |
| Frequency resolution | 9.31 mHz |
| Output voltage range | ±5 into 50 Ω; ±10 into high impedance V |
| Waveform memory | 16,384 16-bit samples |
| PCI output connectors | SMB for ARB and SYNC |
| Operating temperature | 0–50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Function generator
NI-FGEN 2.4 explicitly lists the PCI-5401 as supported hardware.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI-FGEN 2.4 explicitly supports the PCI-5401. Its readme identifies Windows 2000/XP as the operating-system environment; this does not establish compatibility with current operating systems or driver releases.
