NI (National Instruments) PCI-5406 40 MHz Bandwidth, 16-Bit Waveform Generator Device

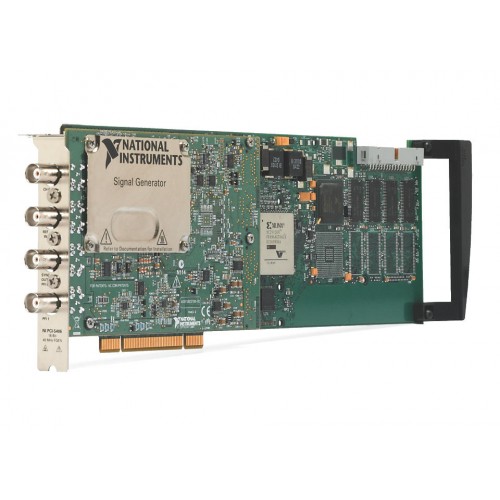

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-5406

The NI PCI-5406 is a computer-based PCI waveform generator with 40 MHz bandwidth, 16-bit analog output resolution and one output channel.

ManufacturerNI (National Instruments)
ModelPCI-5406
Part Number779658-01
Product Type40 MHz Bandwidth, 16-Bit Waveform Generator Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5406

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum Bandwidth40 MHz
Analog Output Onboard Memory Size32 kB
Analog Output Resolution16 bits
Supported Hardware PlatformComputer-Based Device
Bus ConnectionPCI
Supports Arbitrary WaveformsNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-5406 is an NI PCI waveform generator for generating sine, square, triangle, ramp, pseudorandom noise and DC signals. The listed NI part number is 779658-01.

Its single analog output channel provides 16-bit resolution, a maximum analog update rate of 100 MS/s and a listed voltage range of -10 V to 10 V. The device has 32 kB of onboard analog output memory; it does not support arbitrary waveforms or scripting.

  • 40 MHz maximum bandwidth.
  • 16-bit analog output resolution with a maximum update rate of 100 MS/s.
  • One analog output channel with a listed voltage range of -10 V to 10 V.
  • 32 kB of onboard analog output memory.
  • Generates sine, square, triangle, ramp, pseudorandom noise and DC signals.
  • PCI bus interface for computer-based integration.
Verified specifications

Technical data

Verified product specifications.

Maximum Bandwidth40 MHz
Analog Output Onboard Memory Size32 kB
Analog Output Resolution16 bits
Supports Arbitrary WaveformsNo
Supported Hardware PlatformComputer-Based Device
Bus ConnectionPCI
Analog Output Voltage Range-10 V to 10 V
Maximum Analog Update Rate100 MS/s
Number of Output Channels1
Supports ScriptingNo
NI part numbers779658-01
