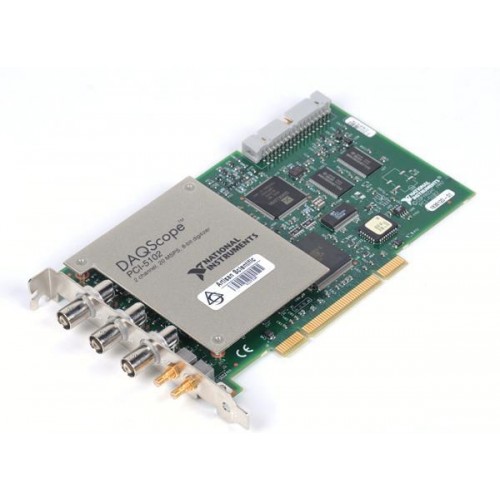

The National Instruments PCI-5102 is a two-channel, 8-bit PCI digitizer with 20 MS/s real-time sampling and 15 MHz typical small-signal bandwidth.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-5102 belongs to the NI 5102 digitizer family and supports PCI bus-master transfers to host memory.
Software planning is essential: NI-SCOPE support for this device depends on Traditional NI-DAQ, which does not provide 64-bit operating-system support. Verify the complete driver and operating-system combination before integration.
Verified product specifications.
| Small-signal bandwidth | 15, typical, −3 dB MHz |
|---|---|
| Input channels | 2 single-ended, simultaneous |
| ADC resolution | 8 bits |
| Maximum real-time sample rate | 20 per channel MS/s |
| Input ranges without attenuation | ±5 V, ±1 V, ±0.25 V, ±50 mV |
| Onboard FIFO depth | 663000 per channel samples |
| Maximum waveform buffer | Up to 16 million per channel with bus mastering; host-memory dependent samples |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Digitizer
NI-SCOPE with a Traditional NI-DAQ dependency.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI states that the PCI-5102 is not supported on 64-bit operating systems because its driver depends on Traditional NI-DAQ. Select a supported 32-bit configuration and verify the NI-SCOPE version.
No. NI specifies that NI-SCOPE 17.1.x installations on 32-bit Windows 8, 7 or Vista also require Traditional NI-DAQ (Legacy) 7.5 for detection of devices such as the PCI-5102.
