NI (National Instruments) PCI-5105 8‐Channel, 12-Bit, 60 MHz Bandwidth PCI Oscilloscope Device

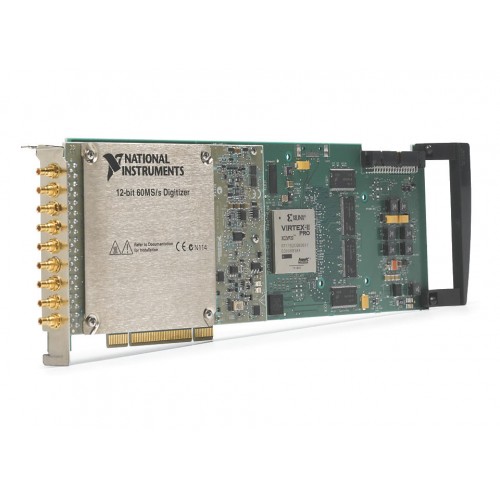

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCI-5105

The NI PCI-5105 is an 8-channel PCI oscilloscope device with simultaneous sampling, 12-bit resolution, 60 MHz bandwidth and a maximum sample rate of 60 MS/s.

ManufacturerNI (National Instruments)
ModelPCI-5105
Part Number779686-03 · 779686-02
Product Type8‐Channel, 12-Bit, 60 MHz Bandwidth PCI Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-5105

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPCI
Oscilloscope Maximum Bandwidth60 MHz
Maximum Sample Rate60 MS/s
Analog Input Voltage Range-15 V to 15 V
Analog Input Resolution12 bits
Voltage Input Channels8
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-5105 is a computer-based oscilloscope and digitizer that connects through the PCI bus. Its eight simultaneously sampled voltage inputs combine 12-bit resolution with 60 MHz maximum bandwidth and a maximum sample rate of 60 MS/s.

The analog inputs support AC/DC coupling and selectable 1 MΩ or 50 Ω impedance. The listed analog input voltage range is -15 V to 15 V; consult the NI specifications for the limits applicable to your selected input configuration. An onboard digital downconverter is not included.

  • Eight voltage input channels with simultaneous sampling.
  • 60 MHz maximum bandwidth and 60 MS/s maximum sample rate.
  • 12-bit analog input resolution.
  • PCI bus interface for computer-based instrumentation.
  • AC/DC input coupling with selectable 1 MΩ or 50 Ω input impedance.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPCI
Oscilloscope Maximum Bandwidth60 MHz
Maximum Sample Rate60 MS/s
Analog Input Voltage Range-15 V to 15 V
Analog Input Resolution12 bits
EnclosedYes
Number of Voltage Input Channels8
Supported Hardware PlatformComputer-Based Device
Analog Input CouplingAC/DC
Analog Input Impedance1 MOhm, 50 Ohm
Onboard Digital DownconverterNo
NI part numbers779686-03, 779686-02, 779686-01
