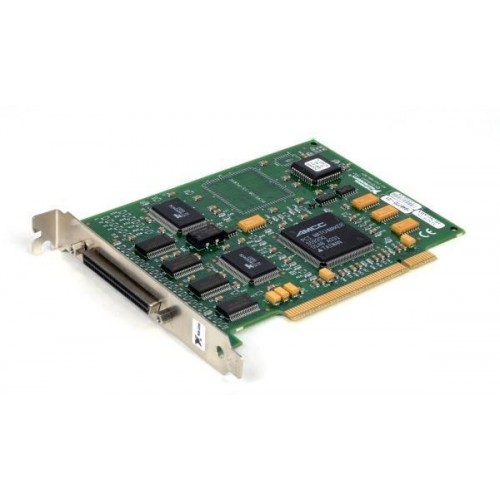

The NI PCI-232/8 provides eight nonisolated RS-232 ports on a PCI board, with rates up to 115.2 kb/s.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This legacy PCI interface uses a breakout cable to expose eight DB-9 male serial connections.
Verified product specifications.
| Bus | PCI; 5 V only |
|---|---|
| Serial standard | RS-232 |
| Port count | 8 ports |
| Maximum baud rate | 115.2 kb/s |
| Isolation | None |
| FIFO size | 64 bytes |
| Board dimensions | 10.67 × 14.48 cm |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host bus
RS-232 interface
Requires a PCI host accepting this 5 V-only board; verify driver and operating-system support separately.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI lists it as nonisolated.
A breakout cable converts the board's 68-pin connector to eight DB-9 male connectors. Cable inclusion is not established for this catalog record.
