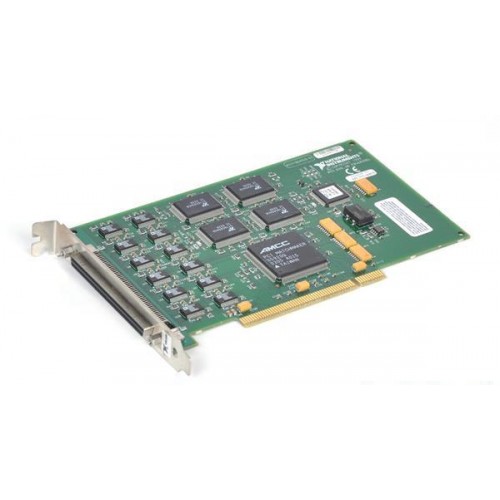

The National Instruments PCI-232/16 is a legacy PCI serial interface with 16 non-isolated RS-232 ports.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
A breakout box separates the board connection into 16 DB-9 male serial connectors.
Driver selection requires care: NI-Serial 17.0 for Windows removed support for PCI-232 interfaces. Check the intended operating system against the documentation for the selected legacy driver release.
Verified product specifications.
| Serial ports | 16 ports |
|---|---|
| Isolation | Non-isolated |
| Maximum baud rate | 115.2 kbps |
| Dimensions | 10.67 × 17.52 cm |
| PCI power requirement | +5 VDC; 250 mA typical, 500 mA maximum |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
RS-232 interface board
NI-Serial 17.0 for Windows does not support the PCI-232 family.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. A breakout box converts its 100-pin SCSI-type connection to 16 DB-9 male connectors.
No. NI explicitly removed PCI-232 support in NI-Serial 17.0 for Windows. Verify hardware and operating-system support in the selected earlier release.
