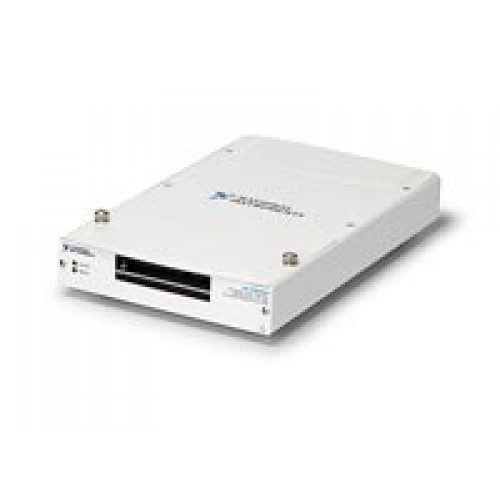

NI USB-6229
1 image: Click to enlarge
National Instruments · USB

NI USB-6229

The NI USB-6229 is an M Series multifunction USB data acquisition device combining 16-bit analog inputs, four analog outputs, correlated digital I/O, and two 32-bit counters/timers.

ManufacturerNational Instruments
ModelUSB-6229
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6229

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16-bit, up to 250 kS/s
Analog output4 channels
Digital I/OUp to 48 lines
Counters/timers2 counters, 32-bit resolution
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6229 combines acquisition, signal generation, digital I/O, and counter functions in a computer-connected M Series device. NI identifies laboratory automation, research, design verification, and manufacturing test as applications.

NI documents screw-terminal, BNC, and OEM versions. The catalog record does not identify the connection variant or manufacturer part number; verify these before selecting wiring or mechanical accessories.

  • Analog acquisition and generation in one USB device.
  • Correlated digital I/O for timed digital operations.
  • Digital triggering and two 32-bit counters/timers.
  • NI-DAQmx driver support for configuration and measurement programming.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 differential or 32 single-ended
ADC resolution16 bit
Maximum analog input sample rate250 single-channel or multichannel aggregate kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels4
DAC resolution16 bit
Maximum analog output update rates1 channel: 833; 2 channels: 740; 3 channels: 666; 4 channels: 625 kS/s per channel
Analog output range±10 V
Digital waveform clock rateUp to 1 on 32 Port 0 lines; system and bus activity dependent MHz
External power supply requirements11–30 VDC, 20 W
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series / USB

DAQ family and host interface

USB-6229

Multifunction I/O device

Driver

NI-DAQmx

Confirm the connection variant and exact device part number before selecting accessories.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6229 Product PageProduct Page · ni.com
Open →
PCI/PXI/USB-6229 Specifications and PinoutsSpecifications · ni.com
Open →
M Series User ManualUser Manual · docs-be.ni.com
Open →
USB-6229 Dimensional DrawingsMechanical Drawings · ni.com
Open →
NI 62xx Cable and Accessory Compatibility GuideTechnical resource
Open →
NI X Series 63xx Upgrade GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6229 OEMView product →
Related model
USB-6221View product →

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can all four analog outputs update at 833 kS/s?

No. The maximum is 833 kS/s for one output or 625 kS/s per channel with four outputs.

Which driver does the USB-6229 use?

NI identifies NI-DAQmx as the driver for device configuration and measurements.
