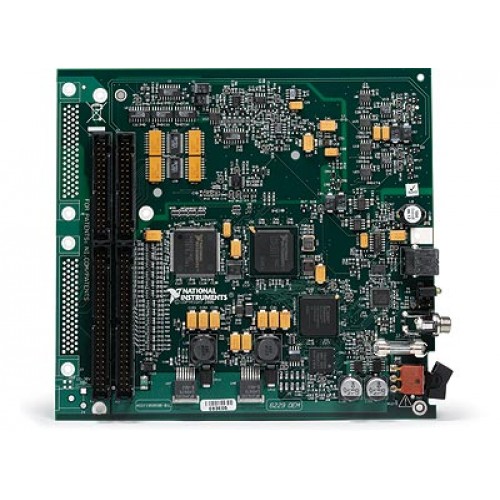

National Instruments USB-6229 OEM Board-only multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6229 OEM

The National Instruments USB-6229 OEM is a board-only M Series USB multifunction DAQ device for integration into custom systems. It combines analog input and output, digital I/O and counter/timer functions.

ManufacturerNational Instruments
ModelUSB-6229 OEM
Part Number195959-01
Product TypeBoard-only multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6229 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Form factorOEM board-only kit
Analog inputs32 single-ended or 16 differential, 16-bit
AI sample rate250 kS/s maximum aggregate
Analog outputs4 channels
Digital I/O48 lines
Counters/timersTwo 32-bit counters/timers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

NI identifies part number 195959-01 as the USB-6229 OEM M Series board-only kit. This is the integration-oriented version of the USB-6229, rather than its enclosed screw-terminal or BNC variants.

OEM USB DAQ boards are intended for installation in custom enclosures and systems. Mechanical layout and thermal design therefore matter: NI provides model-specific drawings and guidance on enclosure conditions that can affect board temperature.

  • Board-only OEM format for custom system integration.
  • Analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
  • Correlated digital I/O and digital triggering.
  • Combines analog I/O and two 32-bit counters/timers in one USB DAQ device.
Verified specifications

Technical data

Verified product specifications.

Analog input channels32 single-ended or 16 differential
Analog input resolution16 bit
Maximum analog input sample rate250; single-channel or multichannel aggregate kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels4
Digital I/O lines48
Counters/timers2 × 32-bit
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series USB DAQ

Product family and host interface

USB-6229 OEM

Board-only multifunction DAQ

Integration resources

Use the OEM user guide and the drawing set for part number 195959-01.

Use OEM-specific wiring and mechanical documentation; do not assume enclosed USB-6229 accessory connections apply.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI/PXI/USB-6229 SpecificationsSpecifications · ni.com
Open →
USB-622x/625x/628x OEM User GuideOEM User Guide · ni.com
Open →
USB-6229 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
Cooling NI USB DAQ OEM ProductsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which part number identifies the USB-6229 OEM kit?

NI lists 195959-01 as the USB-6229 OEM M Series board-only kit.

Can the standard USB 62xx accessory guide establish OEM wiring compatibility?

No. NI explicitly excludes USB 62xx OEM models from that guide and directs users to the OEM user guide and M Series User Manual for wiring and connections.
